E-Catalog > Pneumatic:Air Cylinder,Unit Services,Air Control Valve > Unit Services (Air Filter Regulator Lubricator) ชุดปรับปรุงคุณภาพลมอัด

PAGE VIEW : 9,487

Product Information :

Name :
Unit Services (Air Filter Regulator Lubricator) ชุดปรับปรุงคุณภาพลมอัด
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Pneumatic:Air Cylinder,Unit Services,Air Control Valve
Brand :
SPDC
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Air Filter Regulator Lubricator  ชุดปรับปรุงคุณภาพลมอัดหรือ ชุดกรองปรับลม เพื่อใช้ในงาน ระบบลมอัด เพื่อกรองสิ่งสรกปรก ปรับแรงดันลมให้เหมาะสมกับการใช้งาน และ จ่ายน้ำมันให้กับระบบเพื่อหล่อลื่นสิ้นส่วนต่างในระบบลมอัด

Product Detail :

FR/L series filter regulator+ lubricator

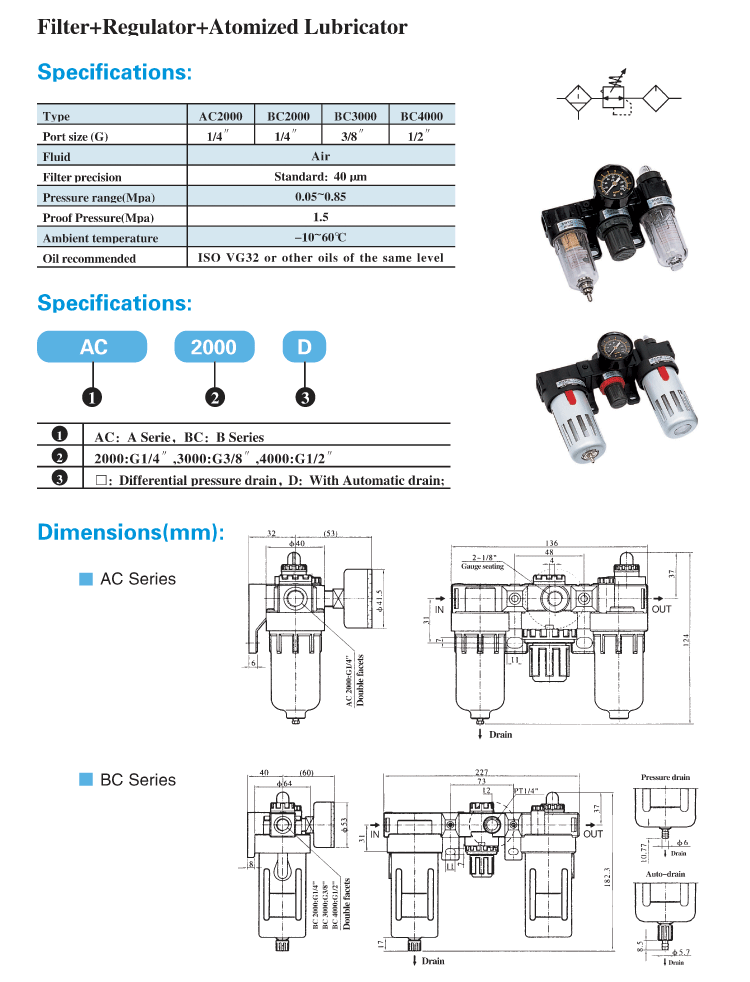

AC、BC series filter+regulator+lubricator

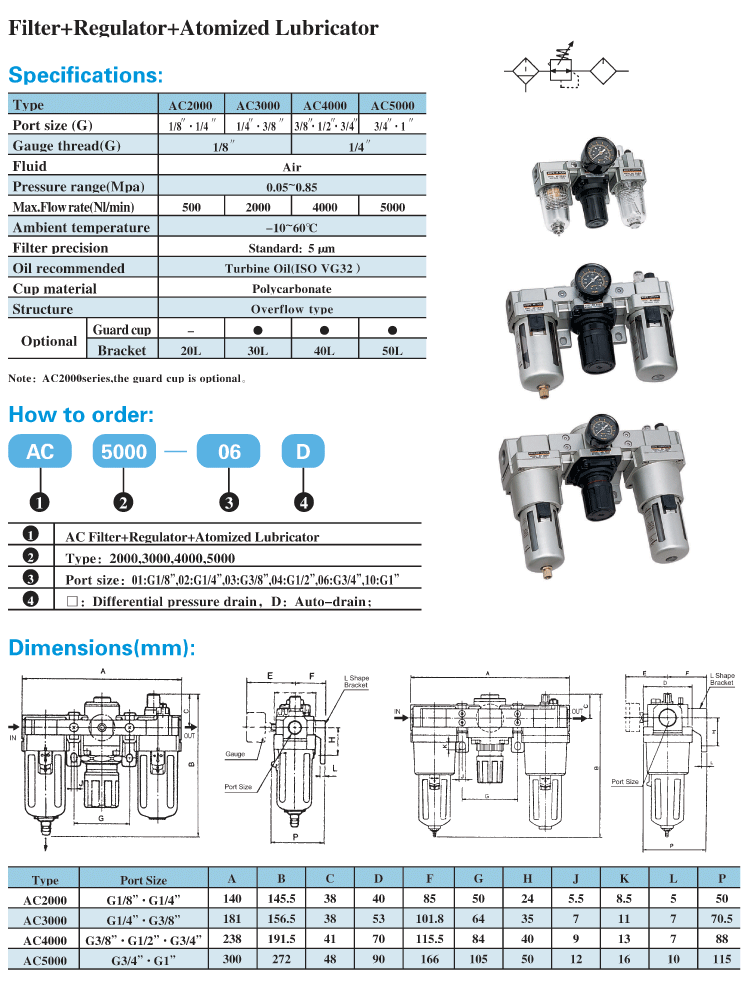

AC series filter+ regulator+ lubricator


Product Gallery :
