E-Catalog > Pneumatic:Air Cylinder,Unit Services,Air Control Valve > Air Control Valve 300 Series Port:3/8

PAGE VIEW : 5,874

Product Information :

Name :
Air Control Valve 300 Series Port:3/8
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Pneumatic:Air Cylinder,Unit Services,Air Control Valve
Brand :
SPDC
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Air Control Valve ระบบนิวแมติก หรือ ระบบลมอัด จะทำงานได้ด้วยชุดกำเนิดลมอัดหรือปั้มลม จ่ายลมให้กับอุปกรณของระบบเพื่อทำงาน ดั่งนั้น ถ้าต้องการให้ระบบทำงานตามที่เราต้องการได้ก็ต้องมีการควบคุมทิศทางของลมอัด นั่นก็คือวาล์วต่างๆที่ใช้ในระบบ วาล์วต่างๆ นั้นมีหลายแบบขึ้นอยู่กับการใช้งาน เช่น วาล์วควบคุมทิศทางการไหลของลมอัด,วาล์วเปิดปิดเป็นต้น

Product Detail :

Solenoid Valve /Air Control Valve.

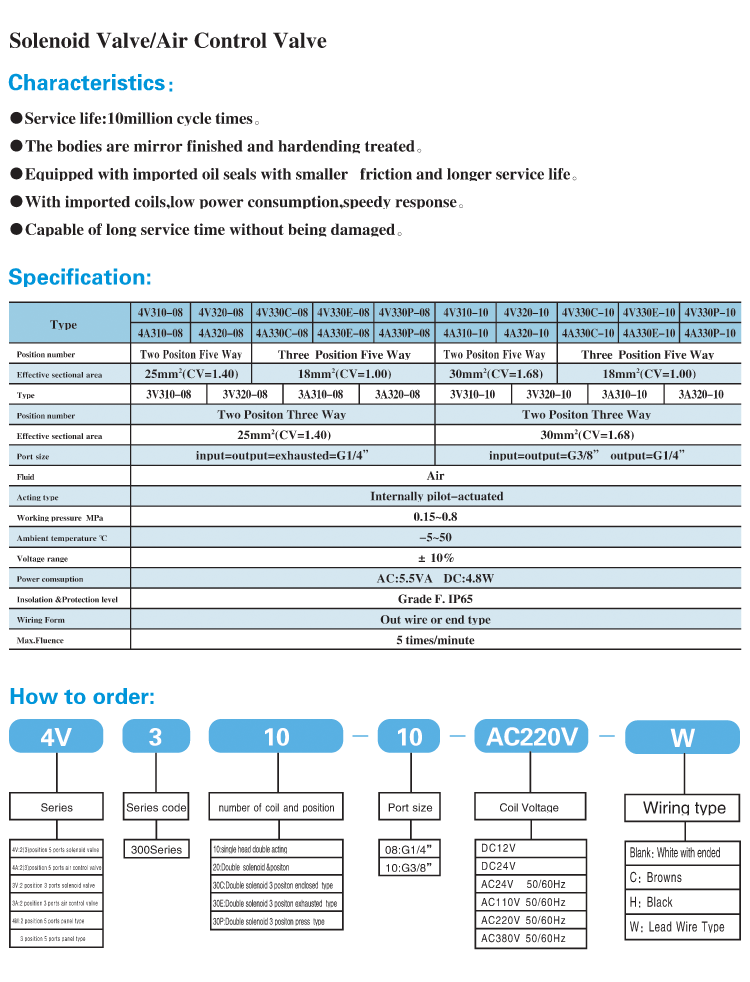

Characteristics :
- Service life :10 million cycle time.
-The bodies are mirror finished and hardending treated.
-Equipped with imported oil seals with smaller friction and longer service life.
-With imported coils,low power consumption,speedy response
-Capable of long service time without being damaged.

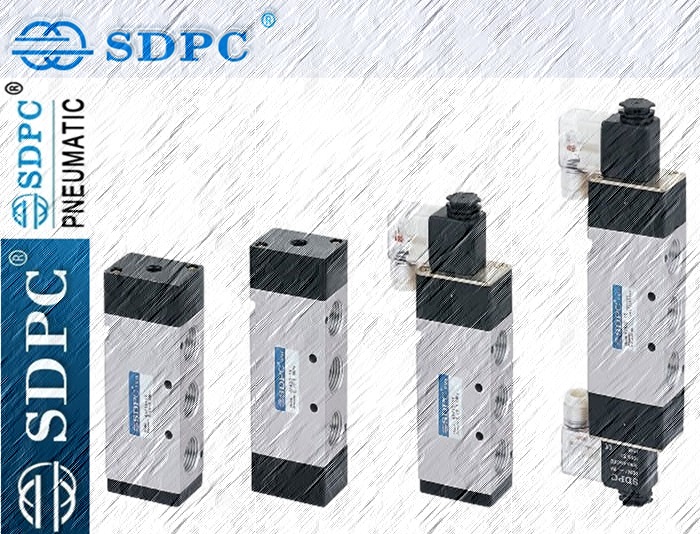

SPDC Pneumatic solenoid valve series 300
300 series air control valve port:3/8"

Product Gallery :
