Product Information :

Name :

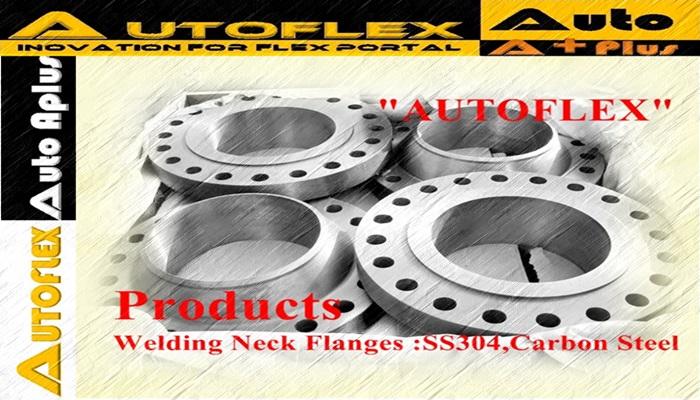

Welding Neck Flanges :SS304,Carbon Steel
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Flange:Stainless Steel,Carbon Steel(หน้าแปลนเหล็ก,หน้าแปลนสเตนเลส)
Brand :
AUTOFLEX
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
socket welded flanges 1500LB product specifications 1.SIZE: OD: 1/2” to 24” 2.CLASS: 150LB,300LB,600LB,900LB,1500LB 3.TYPE: Socket Weld 4.MATERIAL: ASME A105, A350LF2, A182 F5、F9、F22、F304、 F304L、 F316、 F316L;

Product Detail :

Socket Welded Flanges 1500LB
Product Specifications
1.Size: OD: 1/2” to 24”
2.Class: 150LB,300LB,600LB,900LB,1500LB
3.Type: Socket Weld
4.Material: ASME A105, A350LF2, A182 F5、F9、F22、F304、 F304L、 F316、 F316L;


Galvanized Carbon steel Welding Neck Flange With ANSI B16.47 SerA ( MSS SP44 )

Description:

This flange is according to ANSI B16.47 SerA(MSS SP44).It is a type of ANSI standard.ANSI flange standard(American National Standards Institute) include ANSI B 16.5, ANSI B 16.47 series A SP44, Series B, this standard system include slip on flange, blind flange, welded neck flange, threaded flange, lapped joint flange(loose flange), socket welded flange, Orifice Flanges, long weld neck flange and special flange, sizes from 1/2 inch to 60 inch, class 150, class 300, class 600, class 900, class 1500, class 2500.

Standard Type Size Nominal Pressure class(lb) Facing Material
ANSI B16.47 Series A( or MSS SP44) Welding Neck,Blind 26"-60" 150-900 RF; FF;RTJ A105, A181, A182, A350
ANSI B16.47 Series B( or API605) Welding Neck, Blind 26"-60" 75-900 RF; FF;RTJ A105, A181, A182, A350

Specifications:

Standard: ANSI B16.47 Series A( MSS SP44)

Type:       Welding neck flange

Pressure: CLASS150-900

Size:        26"-60"

Material:  A105; A181;A182; A350

Coating:  Black/yellow paint, rust-proof oil, galvanized.

Weld Neck Flanges are flanges that designed to be joined to a piping system by butt welding. the WN

Flange is relatively expensive because of its long neck, but is preferred for high stress applications. The neck, or hub, transmits stresses to the pipe, reducing stress concentrations at the base of the Welding-Neck flanges. The gradual transition of thickness from the base of the hub to the wall thickness at the butt weld provides important reinforcement of the Weld Neck flange. The bore of the Weld-Neck flangematches the bore of the pipe, reducing turbulence and erosion.

Applications:

 Machinery, petroleum, chemical, water, electricity, shipbuilding sectors piping systems and devices

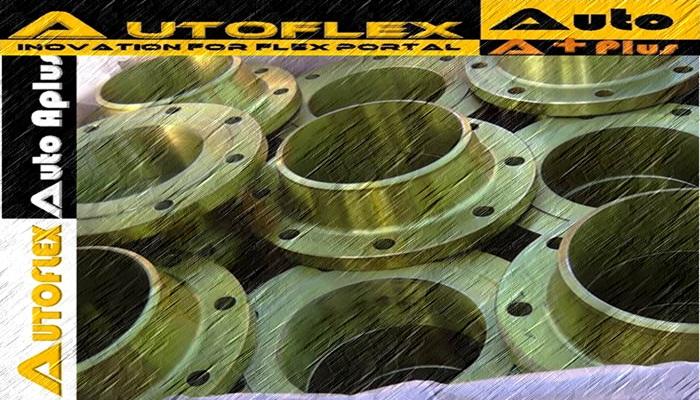

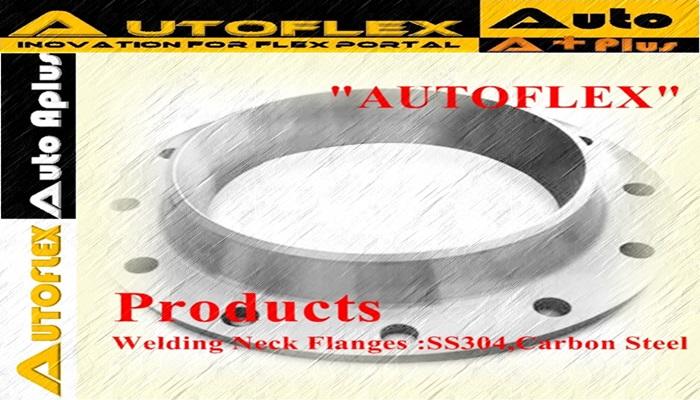

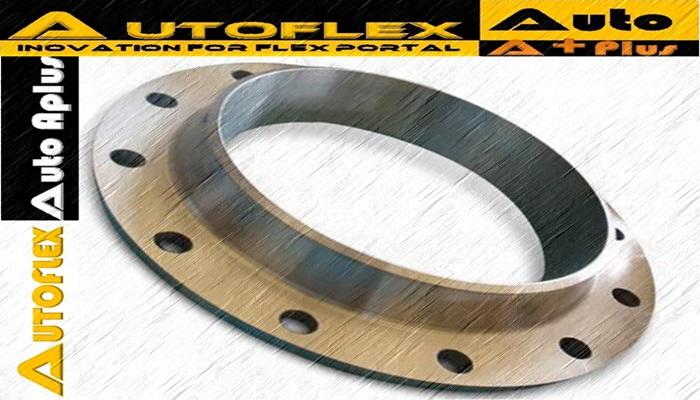

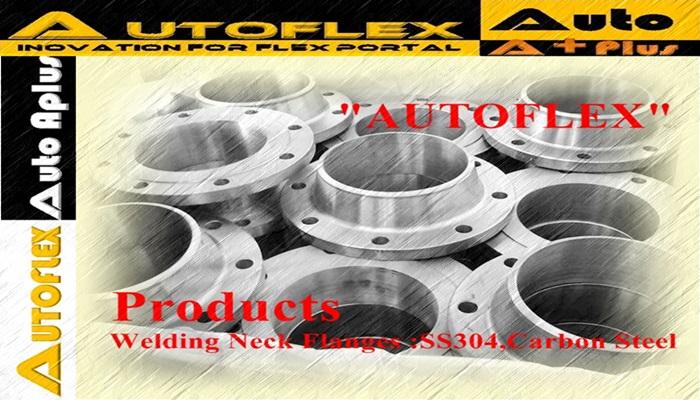

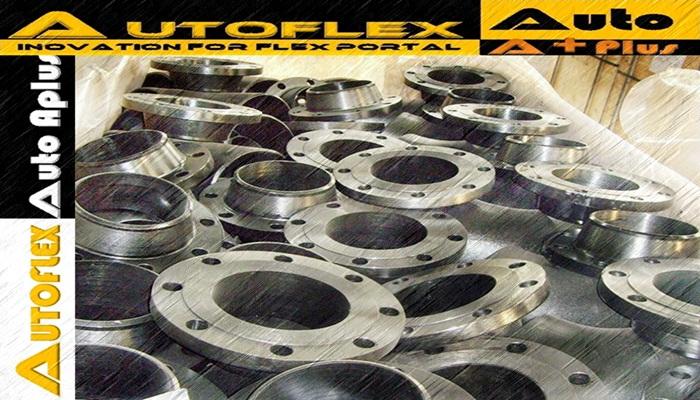

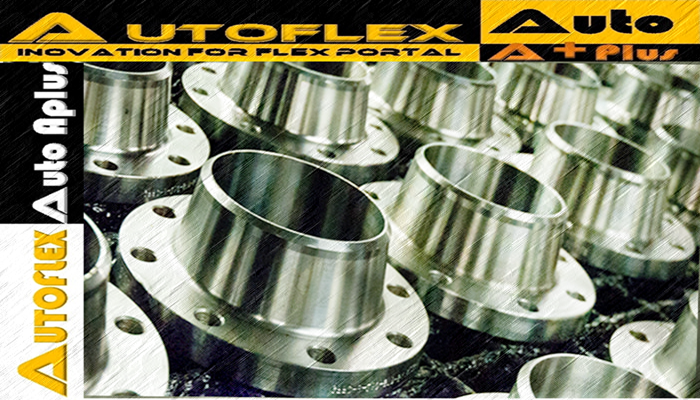

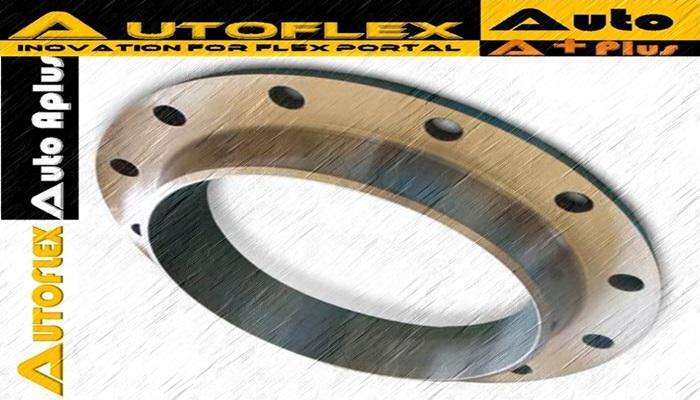

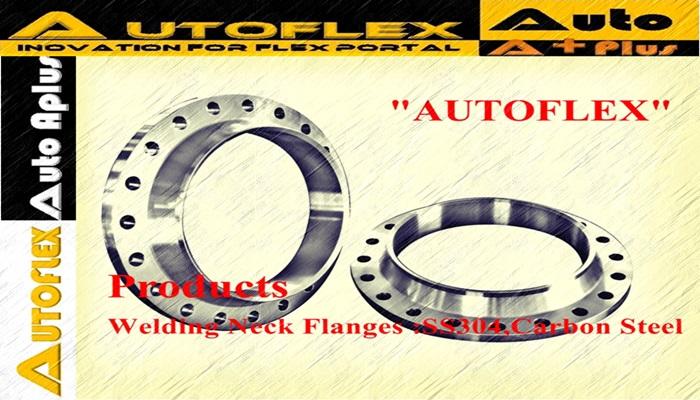

Product Gallery :
