LAP JOINT STUB ENDS - ANSI : SP-LP (SHORT PATTEM - LONG PATTEM ) SUS304,SUS316 SCH 10S - 40S TYPE A
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Fitting:Hexagon Nipple,Union,Reducing Nipple,Lap Joint for Flanges
Brand :
AUTOFLEX
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
LAP JOINT STUB ENDS - ANSI :SP-LP (SHORT PATTEM - LONG PATTEM ) SUS304 SCH 10S - 40S TYPE A Lap Joint  Stub End Stainless Steel Pipe Fitting JIS B2312 / ANSI B16.9 Lap Joint Flange With high tensile strength, these steel lap joint flanges are available with a raised face and back ups for easy installation. Resistant to corrosion, these joint flanges have high tensile strength and weld ability. Use of superior quality alloy for raw material makes our range extremely durable. Available in standard dimensions, these lap joint flanges can also be customized as per client's requirement. PN1.0--------58.0 American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500 European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400  Flange Facing Types Flat Face (FF), Raised face (RF), groove (G), female(F), ring joints face(RJ) Applications:  We,this type pipe fittings be widely used in kinds of industries: Paper Making,Waste-water Treatment Chemical Industry and Natural Gas Shipbuilding Electrical equipment Nuclear Energy Construction Petroleum

Product Detail :

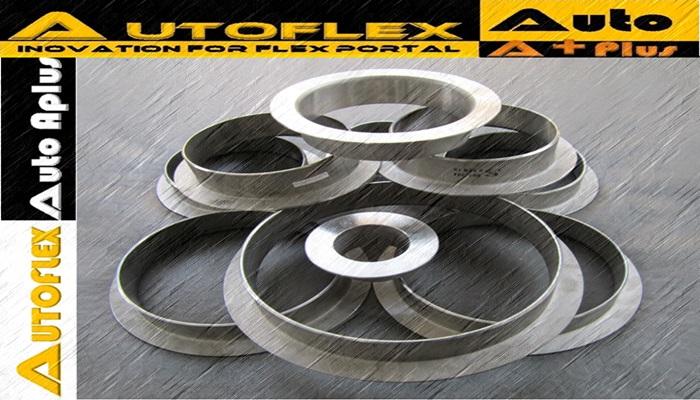

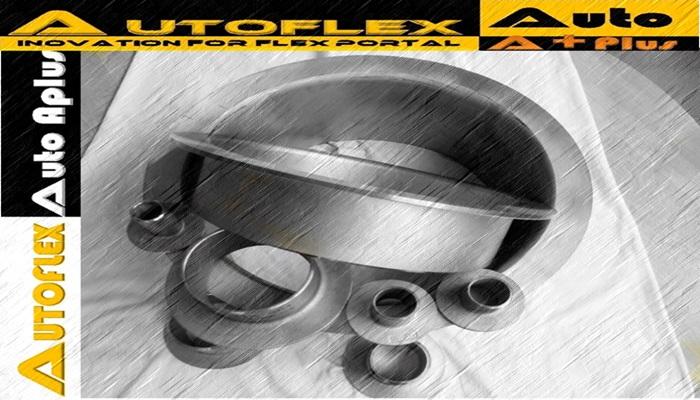

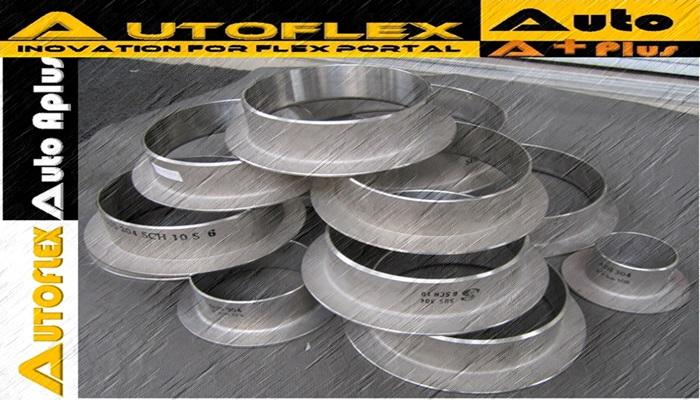

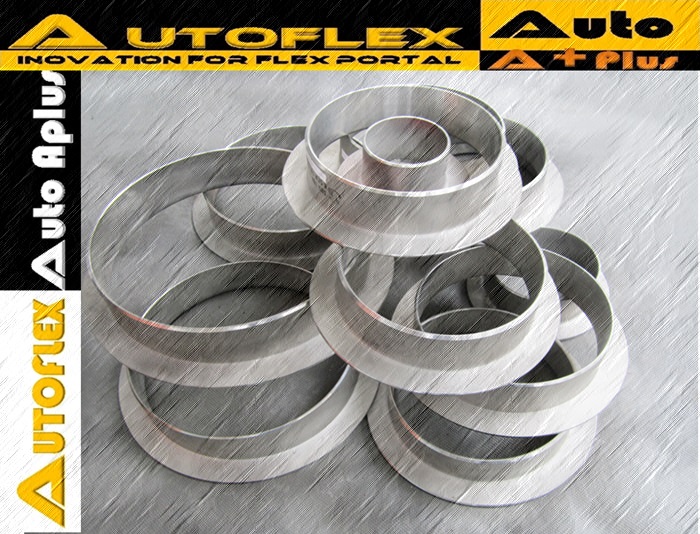

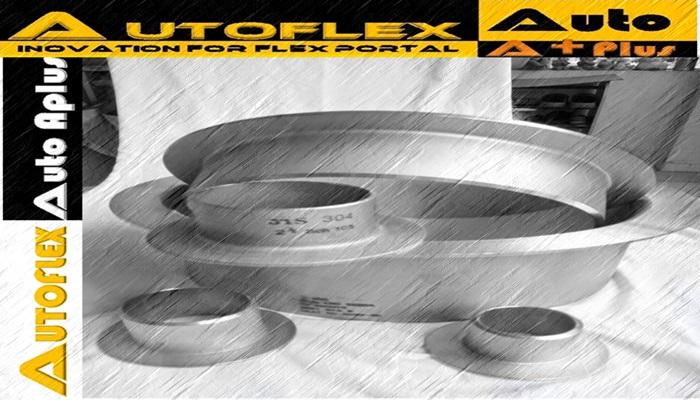

LAP JOINT STUB ENDS - ANSI : SP-LP (SHORT PATTEM - LONG PATTEM ) SUS304 SCH 10S - 40S TYPE A

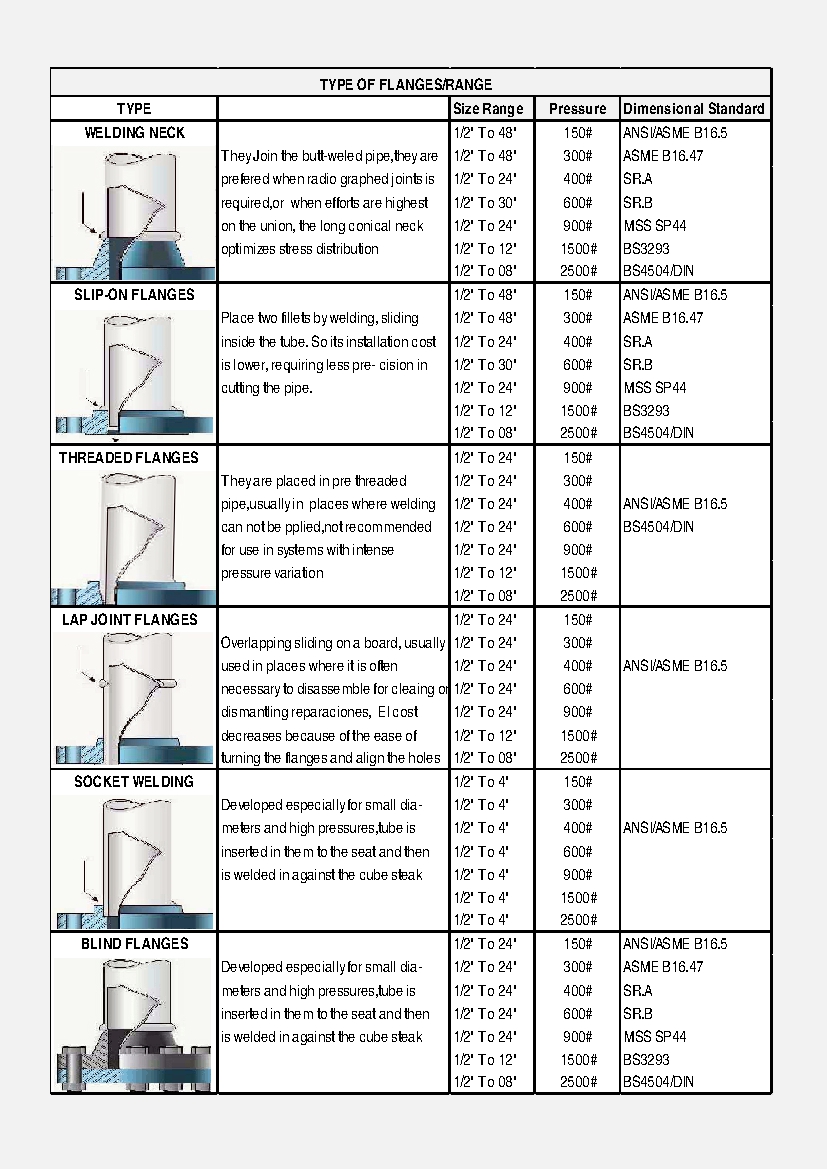

       Loose Flange(Lap Joint Flange)
Lap Joint Flanges(Loose Flanges) are used with a corresponding stub-end that "inserts" in the inside of the flange.  The main benefit of this type of flange, is that once the pipe welds to the insert stub-end, the flange then can rotate for easier alignment of the bolting holes.  However, lap joint flanges and their stub-ends' ability to hold pressure is about the same as slip-on flanges.  They are not suitable for situations with a high external or changing loads of force.  They do provide an advantage in a piping system that needs frequent dismantling for inspection or to remove build-ups.
Size: Lap Joint Flange(Loose Flange):3/8"-80"
DN10-DN2000
Pressure:
America Series:Class 150 ,Class 300, Class 600, Class 900A ,Class 1500,Class 2500.
Europe Series: PN2.5,PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN320,PN400.
Flange Facing Types
America Series: Flat face(FF),Raised face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring type joints face(RJ/RTJ)
Europe Series: Type A(Flat Face),Type B(Raised Face),Type C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove)
Material:
Carbon steel: ASTM A105,ASTM A105N,GB 20,C22.8.
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Standards:
ASME ANSI B16.5,ASME ANSI B16.47.
API 605,API 6L.
MSS SP 44
CSA Z245.12
EN1092-1,EN1759-1.
DIN2642,DIN2655,DIN2656.
BS1560,BS 4504,BS 10.
AFNOR NF E29-200-1
ISO7005-1
AS2129
JIS B2220
UNI 2276. UNI 2277.UNI 2278 .UNI 6089 .UNI 6090

Nominal Diameter Outside Diameter  Lap Joint Stub End  F   Length Diameter of Lap Nominal&Maximum Lap Joint Stub End R
DN NPS OD LP SP G A Max Bmax
15 1/2" 21.3 76 51 35 3 0.75
20 3/4" 26.7 76 51 43 3 0.75
25 1" 33.4 102 51 51 3 0.75
32 1 1/4" 42.4 102 51 64 5 0.75
40 1 1/2" 48.3 102 51 73 6 0.75
50 2" 60.3 152 64 92 8 0.75
65 2 1/2" 73 152 64 105 8 0.75
80 3" 88.9 152 64 127 10 0.75
90 3 1/2" 101.6 152 76 140 10 0.75
100 4" 114.3 152 76 157 11 0.75
125 5" 141.3 203 76 186 11 1.5
150 6" 168.3 203 89 216 13 1.5
200 8" 219.1 203 102 270 13 1.5
250 10" 273.1 254 127 324 13 1.5
300 12" 323.9 254 152 381 13 1.5
350 14" 355.6 305 152 413 13 1.5
400 16" 406.4 305 152 470 13 1.5
450 18" 457.2 305 152 533 13 1.5
500 20' 508 305 152 584 13 1.5
550 22" 559 305 152 641 13 1.5
600 24" 610 305 152 692 13 1.5






Lap Joint  Stub End Stainless Steel Pipe Fitting JIS B2312 / ANSI B16.9
Lap Joint Flange
  With high tensile strength, these steel lap joint flanges are available with a raised face and back ups for easy
  installation. Resistant to corrosion, these joint flanges have high tensile strength and weld ability. Use of
  superior quality alloy for raw material makes our range extremely durable. Available in standard dimensions,
  these lap joint flanges can also be customized as per client's requirement.
PN1.0--------58.0
  American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500
  European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400
Flange Facing Types
  Flat Face (FF), Raised face (RF), groove (G), female(F), ring joints face(RJ)
Applications:
  We,this type pipe fittings be widely used in kinds of industries:
  Paper Making,Waste-water Treatment
  Chemical Industry and Natural Gas
  Shipbuilding
  Electrical equipment
  Nuclear Energy
  Construction
  Petroleum
Specification
Nominal Pipe Size (NPS) Outside Diameter at Vevel  D Center to End  Approx,Weight(kg)
Run   c Outlet  M
Inch mm Inch mm Inch mm STD XS XXS
1/2" 0.84 21 1 25 1 25 0.047 0.062 -
3/4" 1.05 27 1.12 29 1.12 29 0.059 0.073 -
1" 1.32 33 1.5 38 1.5 38 0.104 0.127 -
1 1/4" 1.66 42 1.88 48 1.88 48 0.141 0.177 -
1 1/2" 1.90 48 2.25 57 2.25 57 0.168 0.218 -
2" 2.38 60 2.5 64 2.5 64 0.232 0.304 -
2 1/2" 2.88 73 3 76 3 76 0.368 0.463 -
3" 3.50 89 3.38 86 3.38 86 0.64 0.835 -
3 1/2" 4.00 102 3.75 95 3.75 95 0.962 1.29 -
4" 4.50 114 4.12 105 4.12 105 1.16 1.55 -
5" 5.56 141 4.88 124 4.88 124 1.91 2.61 -
6" 6.62 168 5.62 143 5.62 143 2.91 4.2 -
8" 8.62 219 7 178 7 178 5.13 7.4 -
10" 10.75 273 8.5 216 8.5 216 9.08 11.9 -
12" 12.75 324 10 254 10 254 13.4 17.3 -
14" 14.00 356 11 279 11 279 16 20.8 -
16" 16.00 406 12 305 12 305 20.1 26.2 -
18" 18.00 457 13.5 343 13.5 343 25.9 33.9 -
20" 20.00 508 15 381 15 381 32.6 42.6 -
22" 22.00 559 16.5 419 16.5 419 38.7 51.7 -
24" 24.00 610 17 432 17 432 45 60.1 -
26" 26.00 660 19.5 495 19.5 495 50.3 67.3 -
28" 28.00 711 20.5 521 20.5 521 56 74.9 -
30" 30.00 762 22 559 22 559 62 82.9 -
32" 32.00 812 23.5 597 23.5 597 68.3 91.2 -
34" 34.00 864 25 635 25 635 74.8 1000 -
36" 36.00 914 26.5 673 26.5 673 81.7 109 -
38" 38.00 965 28 711 28 711 94 126 -
40" 40.00 1016 29.5 749 29.5 749 102 137 -
42" 42.00 1067 30 762 28 711 110 147 -
44" 44.00 1118 32 813 30 762 125 167 -
