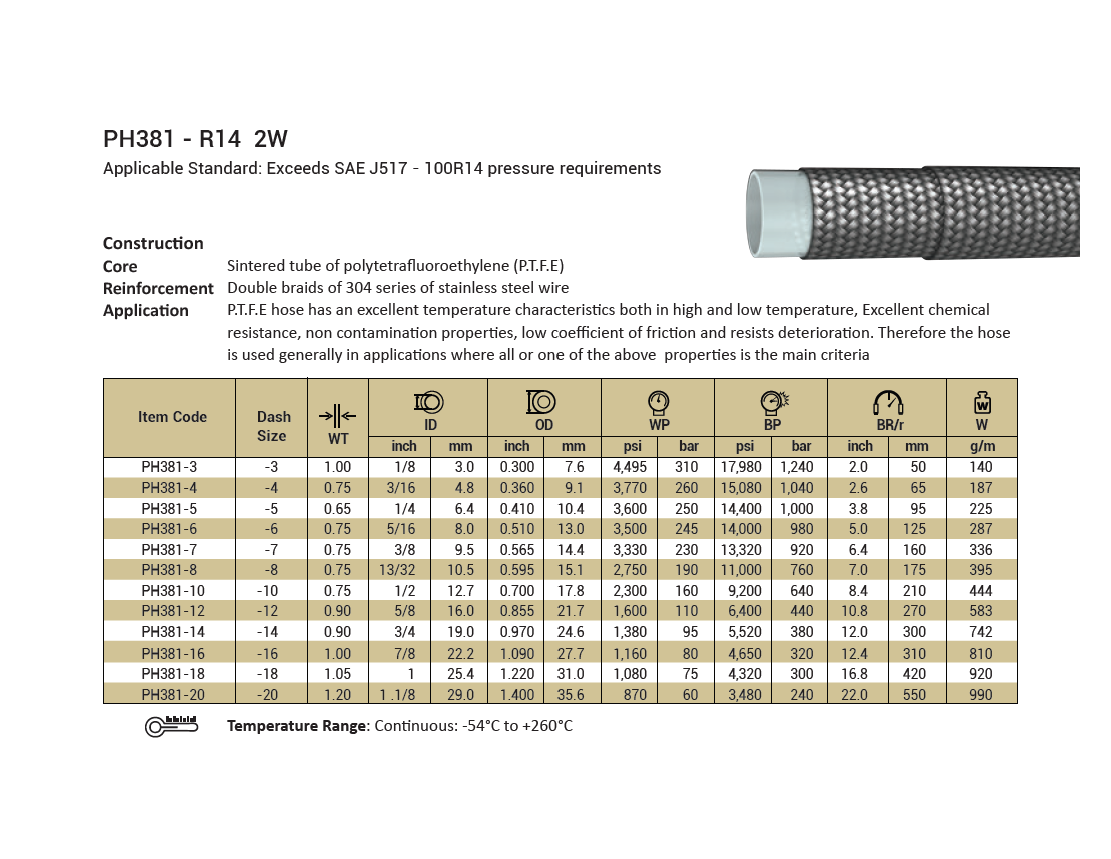

    PH381 – Exceeds SAE J517 – 100R14: Smooth Bore PTFE Hose 2 W/B

    TEFLON (PTFE) HOSE PH381 EXCEEDS SAE J517 / 100R14 SMOOTH BORE PTFE HOSE 2 W/B

    Application:

                      P.T.F.E. hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in applications where all or one of the above properties is the main criteria.

    Applicable Standard: Standard: Exceeds SAE J517 – 100R14 pressure requirements.

    Construction:

                        Core: Sintered tube of polytetrafluoroethylene (P.T.F.E.).

                        Reinforcement: Double braids of 303/304 series of stainless steel wire

                       Temperature Range: Continuous: -54°C to +260°C
