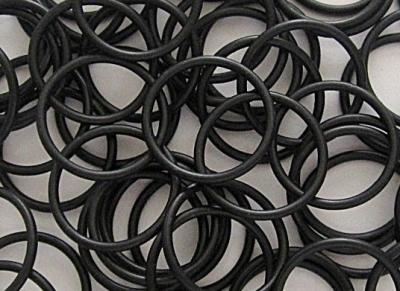

ตารางแสดงขนาดโอริ่งมาตราฐานสากล มาตราฐานญี่ปุ่น ในกลุ่มอุตสาหกรรมและยานยนต์
O-Ring JIS B2401,JIS B2406,JASO-6605 (Japanese Standard)และตารางแสดงขนาดโอริงไวตัน 75 ชอร์ -
แสดงขนาดโอริงคอร์ดเอ็นบีอาร์ 70ชอร์และ
โอริงคอร์ดไวตัน 75ชอร์ -
แสดงขนาดโอริงเอ็นบีอาร์ 70ชอร์และขนาดโอริง 90 ชอร์
Table of international standard size O-Ring JIS B2401,JIS B2406,JASO-6605 (Japanese Standard) ตารางแสดงขนาดโอริ่งมาตราฐานสากล มาตราฐานญี่ปุ่น ในกลุ่มอ
ตารางแสดงขนาดโอริ่งมาตราฐานสากล มาตราฐานญี่ปุ่น ในกลุ่มอุตสาหกรรมและยานยนต์ O-Ring JIS B2401,JIS B2406,JASO-6605 (Japanese Standard)และตารางแสดงขนาดโอริงไวตัน 75 ชอร์

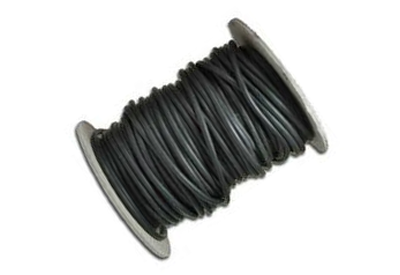

ตารางแสดงขนาดโอริงคอร์ด
แสดงขนาดโอริงคอร์ดเอ็นบีอาร์ 70ชอร์และ โอริงคอร์ดไวตัน 75ชอร์
ตารางแสดงขนาดโอริงเอ็นบีอาร์ 70 ชอร์ 90 ชอร์
แสดงขนาดโอริงเอ็นบีอาร์ 70ชอร์และขนาดโอริง 90 ชอร์
Company Profile
Auto A-Plus Co.,Ltd. Founded on 2546(2003), first stages we are doing trading business in Thailand and also import products from Germany, Italy, Australia, USA, for industrial and government customers; Auto A-Plus Co.,Ltd. teams contain engineer and marketing for instrument and transfers is devoted to SUS304, SUS321, SUS316 flexible hoses, expansion joints, Bellow, 304 Lap Joints which imports from China,India, meanwhile we are doing connection and metal working according to customers and drawings,or samples, products such like stainless steel flanges, Lap Joint and fittings can import or buying in Thailand following international standards then send to your working site.

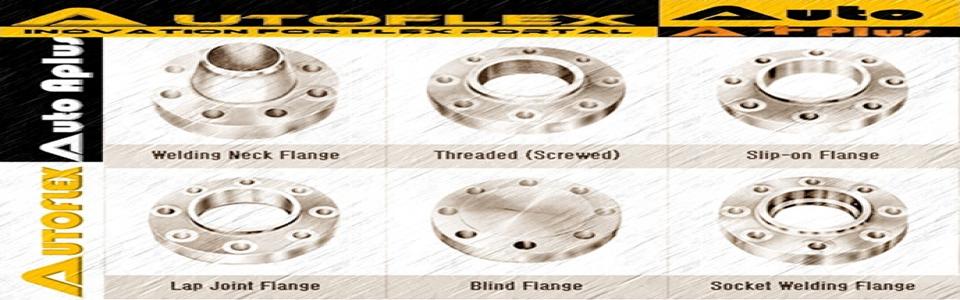

Stainless Flange Or Steel Flange
-Standard Japanese : JIS-5K, JIS-10K, JIS-20K
-Standard Germany : DIN-PN10, DIN-PN16, DIN-PN25
-Standard American : ANSI-150LB, ANSI-300LB, ANSI-900LB, ANSI-1500LB
Type Fitting:
Union-Union,Flange-Flange,Union-Nipple,Nipple-Nipple,Union(Socket Welded) And (Butt Welded),Male Union (Swivel Nut+Male Adapter) And Nipple,Female Swivel Nut,Pinlug Swivel Nut, Fixed Flange,Loose Flange,Thread End,Hydraulic Fitting,Socket-Quick,Release Coupling,Pipe End (Can Nut Hydrostatic Pressure Test,Thread End+Camlock Part A And D and testing as customers request, and doing welding according to length and end type of Flexible Hose, Expansion Joint in Brand: “AUTOFLEX”
Currently Auto A-Plus owns metal workshop for faster and convenience services with honesty. Control quality as before but more efficient, AUTOFLEX focus on offering safty, faster, sincerity services in order to give support and win trust from customers. Our main business is flexible hoses and others like lap joint, stainless steel flanges, fittings which imports and sources local.
In addition now we are also selling importing Brands, Taiwan GMORS, Singapore TOPART, Japan NOK,Italy GAPI In products O-Ring Cord: NBR 70,90 Sh A,VITON 75 Sh A,EPDM 70 Sh A /O-Ring : NBR 70 Sh A, 90 Sh A,VITON 75 Sh A,EPDM 70 Sh A, Standard Type : AS-568A (American) , BS 1806 (British), JIS B 2401 (Japanese) Series :P,G,S,SS,V/ ISO- 3601(Iternational) / DIN 3771 (Germany)
暹罗波纹管有限公司成立于佛历2546(2003),开始阶段我们开始做一些贸易，从德国，意大利，澳大利亚，美国进口 产品，销售给工厂和政府的客户，我们技术和市场部门专业专注于SUS304, SUS321, SUS316 波纹管，补偿器，SUS304 接头，从中国，印度，同时我们会给客户做连接和一些加工根据客户的样品或者图纸，连接的部件是进口或者本地供应不锈钢法兰，接头，其他管件产品，加工好后运送产品到您的仓库和工地。
连接方式：不锈钢法兰
日标: JIS-5K, JIS-10K, JIS-20K
德标: DIN-PN10, DIN-PN16, DIN-PN25
美标：ANSI-150LB, ANSI-300LB, ANSI-900LB, ANSI-1500LB
管件：O型套圈接头，O型胶圈接头，卡套式接头，外锥面接头，扩口式接头，内锥面接头，球面接头，铰接转向接头，锥螺纹接头，平面接头活套螺母，球形接头活套螺母，内锥接头活套螺母，外螺纹内锥接头，活套螺母椎管外螺纹，椎管外螺纹，椎管内螺纹，带活套螺母的锥管内螺纹，活接头，爪式，拉杆式，，开闭式。
现在我们有自己的加工基地为了提供更为便捷，快速，适应客户各种应用用途的需求，专业专注于给客户更为舒适的服务，信赖暹罗波纹管有限公司的服务,为客户服务。
我们也在销售O-Ring橡胶密封件等产品，品牌台湾 GMORS, 新加坡TOPART, 日本NOK,意大利 GAPI O-Ring 线材: NBR 70,90 Sh A,VITON 75 Sh A,EPDM 70 Sh A /O-Ring圈材 : NBR 70 Sh A, 90 Sh A,VITON 75 Sh A,EPDM 70 Sh A, 标准 : AS-568A (美国) 直径1.78 2.62 3.53 5.33, BS 1806 (英国) 直径1.78 2.62 3.53 5.33, JIS B 2401 (日本) Series : P,G,S,SS,V直径1.9 2.4 3.1 3.5 5.7 8.4, ISO- 3601(国际标准) 直径1.8 2.65 3.55 5.3 7 ,DIN 3771 (德国) 直径1.8 2.65 3.55 5.3 7
สินค้าใหม่ (New Products)
TEFLON (PTFE) HOSE PH370 CONVOLUTED / PH371 CONVOLUTED CONDUCTIVE
Aplication: P.T.F.E. hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in applications where all or one of the above properties is the main criteria in automotive, chemical, pharmaceutical & food processing, plastic & rubber molding machines. Also, for some applications the tube can also be made conductive to dissipate electro-static Charges.
Applicable Standard: Standard: Polyhose proprietary product.
Construction:
Core: Helically convoluted sintered tube of polytetrafluoroethylene (P.T.F.E.).
Reinforcement: Single braid of 304/316 series of stainless steel wire
Temperature Range:
Continuous: -54°C to +260°C
Last Update : 19/11/2024
TEFLON (PTFE) HOSE PH179 - SAE J517 100R14 SMOOTH BORE PTFE HOSE
Application: P.T.F.E hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficent of friction and resists deterioration. Therefore the hose is used generally in applications where all are one of the above properties is the main criteria.
Applicable Standard: Standard: SAE J517 – 100R14
Construction:
Core: Sintered tube of polytetrafluoroethylene (P.T.F.E.).
Reinforcement: Single braid of 303/304 series of stainless steel wire
Temperature Range:
Continuous: -54°C to +260°C
Last Update : 19/11/2024
HYDRAULIC HOSE PH154 - SAE J517-100-R2 / EN 853 2SN HIGH PRESSURE HYDRAULIC LINES 80 TO 415 BAR
Application: High Pressure Hydraulic Lines 80 to 415 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems.
Applicable Standard: Standard: SAE J517 – 100 R2 / EN 853-2SN
Construction:
Core: Oil & water resistant Synthetic rubber
Reinforcement: Double steel wire braids
Cover: Black Color, Synthetic rubber resistant to weather and abrasion ,oil & ozone
Temperature Range:
Continuous: -40°C to +120°C
Impulse Cycles : 200,000
Tested upto: 400,000 cycles,upto 1” I.D.
Last Update : 14/11/2024
HYDRAULIC HOSE PH153 - SAE J517-100-R1 / EN 853 1SN MEDIUM PRESSURE HYDRAULIC LINES 40 TO 250 BAR
Application: MEDIUM Pressure Hydraulic Lines 40 to 250 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems
Applicable Standard: Standard: SAE J517 – 100 R1 / EN 8531SN
Construction:
Core: Oil & water resistant Synthetic rubber
Reinforcement: Single steel wire braid
Cover: Black Color, Synthetic rubber resistant to weather and abrasion, oil & ozone.
Temperature Range:
Continuous: -40°C to +120°C
Impulse Cycles : 150,000
Tested upto: 300,000 cycles, upto 1I.D.
Last Update : 14/11/2024
HYDRAULIC HOSE PH146 - SAE J517-100-R5 MEDIUM PRESSURE HYDRAULIC LINES 25 TO 210 BAR
Application: MEDIUM Pressure Hydraulic Lines 25 to 210 bar.
For use with fluids in Hydraulic systems Can also be used in air and water. Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems
Applicable Standard: Standard: SAE J517 – 100 R5
Construction:
Core: Oil and Water resistant Synthetic rubber
Reinforcement: Single steel wire braid
Cover: Black Color, single braid of textile fiber
Temperature Range: Continuous: -40°C to +120°C
Last Update : 14/11/2024
PH144 - SAE J517 - 100 R3 / EN 854: Standard Hydraulic Hose – Rubber
HYDRAULIC HOSE PH144 - SAE J517-100-R3 / EN 854 /LOW PRESSURE AND LOW IMPULSE HYDRAULIC LINES 30 TO 110 BAR
Application:
Low pressure and low impulse hydraulic lines 30 to 110 bar.for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handiling equipments and machineries/systems.
Applicable Standard: Standard: SAE J517 – 100 R3 / EN 854
Construction:
Core: Oil resistant Synthetic rubber
Reinforcement: Double fiber braids
Cover:Black Color, Synthetic rubber resistant weather and abrasion
Temperature Range:Continuous: -40°C to +120°C
PH144 - SAE J517 - 100 R3 / EN 854: สายไฮดรอลิกมาตรฐาน – ยาง
สายไฮดรอลิก PH144 - SAE J517-100-R3 / EN 854 / สายไฮดรอลิกแรงดันต่ำและแรงกระตุ้นต่ำ 30 ถึง 110 บาร์
การใช้งาน:
สายไฮดรอลิกแรงดันต่ำและแรงกระตุ้นต่ำ 30 ถึง 110 บาร์ สำหรับใช้กับน้ำมันปิโตรเลียม สังเคราะห์ หรือของเหลวที่ใช้กับน้ำในระบบไฮดรอลิก เหมาะสำหรับอุปกรณ์และเครื่องจักร/ระบบการจัดการวัสดุทางการเกษตร การก่อสร้าง และการจัดการวัสดุ
มาตรฐานที่ใช้บังคับ: มาตรฐาน: SAE J517 - 100 R3 / EN 854
โครงสร้าง:
แกนกลาง : ยางสังเคราะห์ทนน้ำมัน
การเสริมแรง: เส้นใยคู่ถักเปีย
ปลอก: สีดำ ยางสังเคราะห์ทนต่อสภาพอากาศและการขีดข่วน
ช่วงอุณหภูมิ: ต่อเนื่อง: -40°C ถึง +120°C
Last Update : 14/11/2024
HYDRAULIC HOSE PH147 - SAE J517-100-R6 / EN 854 / VERY LOW PRESSURE AND LOW IMPULSE HYDRAULIC LINES 20 TO 35 BAR
Application: Very low pressure and low impulse hydraulic lines 20 to 35 bar.for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Stationary equipments and hydraulic systems.
Applicable Standard: Standard: SAE J517 – 100 R6 / EN 854
Construction:
Core: Oil resistant Synthetic rubber
Reinforcement: Single fiber braid
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion
Temperature Range: Continuous: -40°C to +120°C
Last Update : 14/11/2024
HYDRAULIC HOSE PH278 - SPIRAL HOSE. EN 856 / 4SH /VERY HIGH PRESSURE HYDR.LINES 250 TO 420 BAR
Application: Very high pressure Hydraulic Lines 250 to 420 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Eathmoving & Material handling equipemtns and machineries/systems.
Applicable Standard: Standard: EN 856-4SH
Construction:
Core: Oil and Water resistant Synthetic rubber
Reinforcement: Four high tensile steel wire spirals
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion
Temperature Range:
Continuous: -40°C to +100°C
Intermittent: max. 120°C
Last Update : 13/11/2024
RUBBER STEAM HOSE PH472 STEAM 2 W/B HOSE - EPDM RUBBER RESISTANT HIGH TEMPERATURE STEAM
Application: High temparature steam lines at constant pressure of 250 psi.
Applicable Standard: Standard: IS 10655 Type 3/BS 5342.
Construction:
Core: EPDM rubber resistant high temperature steam
Reinforcement: Double steel wire braids
Cover: Black color, EPDM rubber resistant to abrasion, heat and weather
Temperature Range: Upto +205°C
Last Update : 13/11/2024
MULTIPURPOSE HOSE PH368 / POLYESTER TEXTILE YARM BRAIDING
Application: Polyhose PropLow working Pressure for various kinds of application. The Hose can be used with Air,Gas,Water, and Petroleum, Synthetic or Water based fluids, Suitable for agricultural Automotives, and General industrial purposes
Applicable Standard: Polyhose proprietary Product SAE
Construction:
Core: Black Plasticized PVC
Reinforcement: Polyester textile yarm braiding.
Cover: red Color, Abrasion Resistance thermoTemperature Range:
Continuous: -40°C to +60°C
Last Update : 13/11/2024
HYDRAULIC HOSE PH277 - SPIRAL HOSE. EN 856 / 4SP VERY HIGH PRESSURE HYDRAULIC LINES 165 TO 450 BAR
Application: Very high pressure Hydraulic Lines 165 to 450 bar and hydrostatic transmission lines For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Earthmoving & Material handling equipments and machineries/systems
Applicable Standard: Standard: EN 856-4SP
Construction:
Core: Oil and Water resistant Synthetic rubber
Reinforcement: Four high tensile steel wire spirals
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion
Temperature Range:
Continuous: -40°C to +100°C
Intermittent: max. 120°C
Last Update : 13/11/2024
O-RING KITS (Available in Nitrile-NBR 70 / 90 ShA and Viton 75 ShA)
O-Ring Kit 1 (AS568) :382 O-Rings in 30 different imperial sizes
O-Ring Kit 2 (JIS) :391 O-Rings in 30 different JIS sizes
O-Ring Kit 3 (AS568) :407 O-Rings in 32 different imperial sizes
O-Ring Kit 4 (Metric) : 408 O-Rings in 32 different metric sizes
O-Ring Kit 5 (AS568/3-9XX) : 212 O-Rings in 20 different imperial sizes
Last Update : 03/03/2017
Nylon Tube
● Excellent in weather resistance
● Good aging
● Resists abrasion and vibration
● High tensile strength and modulus of elasticity
● High impact resistance, a high heat distortion temperature
● Can withstand contact with chemicals, alkalis, dilute acids or oxidizing agents
Application
For Hydraulic Hoses, Robotics, and Vacuum, Fuel, Vapor, Air and Brake lines. Its Heat Resistance and UV Stabilization Make it Resistant to Stress-Cracking, So it Works Well in Sunny Areas.
Last Update : 08/11/2016
PolyurethaneTube
● High flexibility
● Small bending radius
● Widely used in many applications
● Available in ether and ester types
● Optimum abrasion resistance
● High tensile strength
● Low temperature flexibility
Application
Automated machinery, coating machinery, all kinds of pneumatic tools, pneumatic & hydraulic machinery, construction and various pneumatic tools. Polyether based polyurethane tube is hydrolysis-resistant, anti-bacterial & anti-fungous, and it can be used for gardening, cleaning, water hoses and other purposes. Ether type polyurethane tube is resistance to hydrolysis, fungus and weatherability. Ester type polyurethane tube give maximum abrasion resistance and good oil, solvent and great resistance.
Last Update : 08/11/2016
FLEXIBLE PVC SPIRAL STEEL WIRE REINFORCED HOSE OR FLEXIBLE PVC SUPER SUN SPRING HOSE: SUPER SUN SPRING HOSE.
With hard steel wires put inside, this hose withstands to decompression, which is appropriate for vacuuming applications.Superior in transparency, this hose is appropriate for piping of operating oil
Last Update : 08/11/2016
POFPO Rubber flexible joint are desi gned for tough demanding indusreial application,as found in : Air conditioning-heating and ventilating systems,chemical-petrochemical and industrial process piping systems. Power generating systems, marine service, pulp & paper systems,water-wastewater sewage and pollution control system. Instsalled next to mechanical equiment or between the anchor point of piping system. Specify the POFPO Rubber flexible joint to :
1.Absorb pipe/movement/stress
2. Decrease systems noise
3. Isolate Vibration
4. Compensate alignment/offset
5. Eliminate electrolysis
6. Protect against start up,Surge forces
Features:
-Vibration,Sound And Shock Absorption
-Higher Burst Strength
-Greater Recovery From Movement
-Free From Corrosion
-Security Assured In Usage
-Low Deformation Under Pressure
-Suitable For Suction And Delivery
-Greater Movements are Availlable
Last Update : 23/09/2016

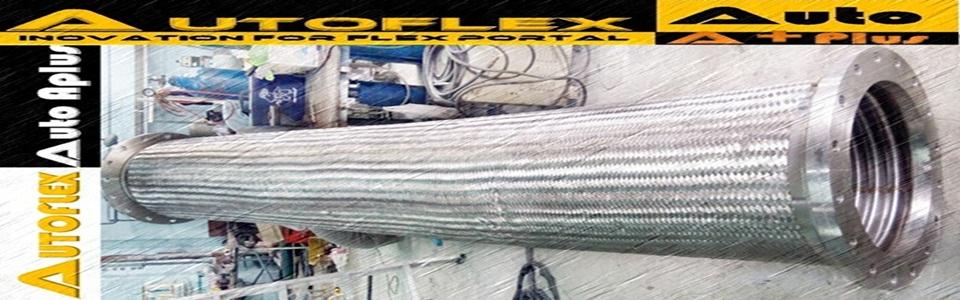

TUBE AND BRAID AVAILABLE : SUS304/SUS316, BRAIDED MESH LAYER : SINGLE LAYER
ท่ออ่อนสแตนเลส เกรด 304 ขนาดใหญ่ ใช้สำหรับงานประปา งานชลประทาน งานน้ำทั่วไป งานสตรีม DN100(4") - DN600 (24") (inch) stainless steel flexible hose with flange fitting :
1.Excellent Flexibility 2.Resistance to Corrosion
3.High Temperat
6"- 16" (Inch) Stainless Steel Flexible Hose With Flange Fitting:
1 High Physical Strength With Light Weight.
2 A Long UsaGe Life.
3 Good Corrosion Characteristics, Resistance to Fire,Moisture, Abrasion and Penetration.
4 Flexibility Making it Good For Static Installations or Even Where There is Constant Flexing in The Application
5 Absorbs Vibration and Noise From Pumps, Compressors, Engines Etc.
6 Compensates For Thermal Expansion and Contraction of Piping.
7 Corrects Problems of Misalignment.
8 A Flexible and Quick Alternative For Rigid Piping in Difficult Locations.
- Iron & Steel Industry (อุตสาหกรรมเหล็กและเหล็กกล้า)
- Petroleum and Gas Plants (ปิโตรเลียมและก๊าซ)
- Chemistry industry (พืชอุตสาหกรรมเคมี)
- Heating and cooling systems (ร้อนและระบบระบายความร้อน)
- Food industry (อุตสาหกรรมอาหาร)
- Automotive industry (อุตสาหกรรมยานยนต์)
- Paper production plants (โรงงานผลิตกระดาษ)
- Maritime industry (อุตสาหกรรมการเดินเรือ)
- Defence industry (อุตสาหกรรมกลาโหม)
- Moving systems (ระบบการย้าย)
- Any kind of depot and tank connections (ชนิดของคลังและการเชื่อมต่อถัง)
Last Update : 22/09/2016

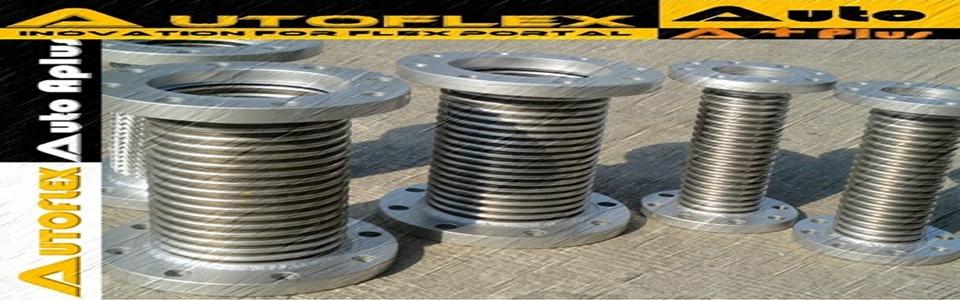

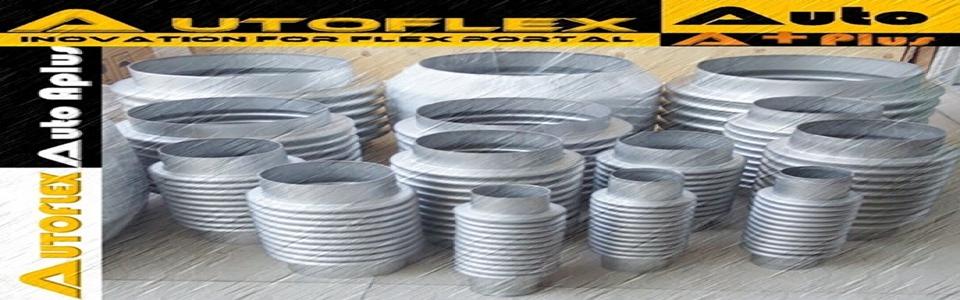

FLEXIBLE HOSE CORRUGATED ANNULAR SUS304, SUS321, SUS316 TYPE. FLANGE WITH END FIXED + FREE SIDE : DN15 (1/2”) – DN.300 (12")
Flexible Stainless Steel Hoses Seal
Flexible stainless steel hose (sleeves) sealed, are designed for transportation of liquid and gaseous media, for water, steam, condensate, gas and petroleum products, chemical products. Operate in extreme conditions, operating pressures and temperatures.
Spiral shaped convolution spiral advance profiled steel band with subsequent contact and seam welding. They have a diameter of 6 mm to 300 mm and lengths from 250 to 6000 mm. For the production of this type of hose used stainless strip thickness 0,15-0,40 mm.
High-quality steel airtight hose is not advisable to use in systems with a high level of vibration as the exploitation of metal hoses in such conditions leads to a resonant vibration of the corrugations or shells entirely.
Spiral represented by two species - rolled and corrugated variations. Corrugated metal oloruka made of seamless or longitudinally welded thin-walled tubes, which are formed by special mechanical or hydraulic devices and supplied with end fittings. They are used as low-cost flexible connecting elements as loading hoses and of movement, thermal expansion, vibration absorption.
Corrugated metal hose is completely waterproof, can be used to transfer liquids and gases under high pressure. In addition, the hose to the valve can be used in vacuum systems.
Addition weld metal hoses we supply hoses with flange with thread.
Due to the high reliability and durability to impacts flexible connection was in demand in the market pipelines and has been widely used in the automotive, aerospace, shipbuilding, metallurgy, petroleum, chemical, food, medical industry and many other industries.
Last Update : 22/09/2016
สินค้าแนะนำ (Recommend Products)
TEFLON (PTFE) HOSE PH370 CONVOLUTED / PH371 CONVOLUTED CONDUCTIVE
Aplication: P.T.F.E. hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in applications where all or one of the above properties is the main criteria in automotive, chemical, pharmaceutical & food processing, plastic & rubber molding machines. Also, for some applications the tube can also be made conductive to dissipate electro-static Charges.
Applicable Standard: Standard: Polyhose proprietary product.
Construction:
Core: Helically convoluted sintered tube of polytetrafluoroethylene (P.T.F.E.).
Reinforcement: Single braid of 304/316 series of stainless steel wire
Temperature Range:
Continuous: -54°C to +260°C
Last Update : 19/11/2024
TEFLON (PTFE) HOSE PH179 - SAE J517 100R14 SMOOTH BORE PTFE HOSE
Application: P.T.F.E hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficent of friction and resists deterioration. Therefore the hose is used generally in applications where all are one of the above properties is the main criteria.
Applicable Standard: Standard: SAE J517 – 100R14
Construction:
Core: Sintered tube of polytetrafluoroethylene (P.T.F.E.).
Reinforcement: Single braid of 303/304 series of stainless steel wire
Temperature Range:
Continuous: -54°C to +260°C
Last Update : 19/11/2024
HYDRAULIC HOSE PH154 - SAE J517-100-R2 / EN 853 2SN HIGH PRESSURE HYDRAULIC LINES 80 TO 415 BAR
Application: High Pressure Hydraulic Lines 80 to 415 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems.
Applicable Standard: Standard: SAE J517 – 100 R2 / EN 853-2SN
Construction:
Core: Oil & water resistant Synthetic rubber
Reinforcement: Double steel wire braids
Cover: Black Color, Synthetic rubber resistant to weather and abrasion ,oil & ozone
Temperature Range:
Continuous: -40°C to +120°C
Impulse Cycles : 200,000
Tested upto: 400,000 cycles,upto 1” I.D.
Last Update : 14/11/2024
HYDRAULIC HOSE PH153 - SAE J517-100-R1 / EN 853 1SN MEDIUM PRESSURE HYDRAULIC LINES 40 TO 250 BAR
Application: MEDIUM Pressure Hydraulic Lines 40 to 250 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems
Applicable Standard: Standard: SAE J517 – 100 R1 / EN 8531SN
Construction:
Core: Oil & water resistant Synthetic rubber
Reinforcement: Single steel wire braid
Cover: Black Color, Synthetic rubber resistant to weather and abrasion, oil & ozone.
Temperature Range:
Continuous: -40°C to +120°C
Impulse Cycles : 150,000
Tested upto: 300,000 cycles, upto 1I.D.
Last Update : 14/11/2024
HYDRAULIC HOSE PH146 - SAE J517-100-R5 MEDIUM PRESSURE HYDRAULIC LINES 25 TO 210 BAR
Application: MEDIUM Pressure Hydraulic Lines 25 to 210 bar.
For use with fluids in Hydraulic systems Can also be used in air and water. Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems
Applicable Standard: Standard: SAE J517 – 100 R5
Construction:
Core: Oil and Water resistant Synthetic rubber
Reinforcement: Single steel wire braid
Cover: Black Color, single braid of textile fiber
Temperature Range: Continuous: -40°C to +120°C
Last Update : 14/11/2024
PH144 - SAE J517 - 100 R3 / EN 854: Standard Hydraulic Hose – Rubber
HYDRAULIC HOSE PH144 - SAE J517-100-R3 / EN 854 /LOW PRESSURE AND LOW IMPULSE HYDRAULIC LINES 30 TO 110 BAR
Application:
Low pressure and low impulse hydraulic lines 30 to 110 bar.for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handiling equipments and machineries/systems.
Applicable Standard: Standard: SAE J517 – 100 R3 / EN 854
Construction:
Core: Oil resistant Synthetic rubber
Reinforcement: Double fiber braids
Cover:Black Color, Synthetic rubber resistant weather and abrasion
Temperature Range:Continuous: -40°C to +120°C
PH144 - SAE J517 - 100 R3 / EN 854: สายไฮดรอลิกมาตรฐาน – ยาง
สายไฮดรอลิก PH144 - SAE J517-100-R3 / EN 854 / สายไฮดรอลิกแรงดันต่ำและแรงกระตุ้นต่ำ 30 ถึง 110 บาร์
การใช้งาน:
สายไฮดรอลิกแรงดันต่ำและแรงกระตุ้นต่ำ 30 ถึง 110 บาร์ สำหรับใช้กับน้ำมันปิโตรเลียม สังเคราะห์ หรือของเหลวที่ใช้กับน้ำในระบบไฮดรอลิก เหมาะสำหรับอุปกรณ์และเครื่องจักร/ระบบการจัดการวัสดุทางการเกษตร การก่อสร้าง และการจัดการวัสดุ
มาตรฐานที่ใช้บังคับ: มาตรฐาน: SAE J517 - 100 R3 / EN 854
โครงสร้าง:
แกนกลาง : ยางสังเคราะห์ทนน้ำมัน
การเสริมแรง: เส้นใยคู่ถักเปีย
ปลอก: สีดำ ยางสังเคราะห์ทนต่อสภาพอากาศและการขีดข่วน
ช่วงอุณหภูมิ: ต่อเนื่อง: -40°C ถึง +120°C
Last Update : 14/11/2024
HYDRAULIC HOSE PH147 - SAE J517-100-R6 / EN 854 / VERY LOW PRESSURE AND LOW IMPULSE HYDRAULIC LINES 20 TO 35 BAR
Application: Very low pressure and low impulse hydraulic lines 20 to 35 bar.for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Stationary equipments and hydraulic systems.
Applicable Standard: Standard: SAE J517 – 100 R6 / EN 854
Construction:
Core: Oil resistant Synthetic rubber
Reinforcement: Single fiber braid
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion
Temperature Range: Continuous: -40°C to +120°C
Last Update : 14/11/2024
HYDRAULIC HOSE PH278 - SPIRAL HOSE. EN 856 / 4SH /VERY HIGH PRESSURE HYDR.LINES 250 TO 420 BAR
Application: Very high pressure Hydraulic Lines 250 to 420 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Eathmoving & Material handling equipemtns and machineries/systems.
Applicable Standard: Standard: EN 856-4SH
Construction:
Core: Oil and Water resistant Synthetic rubber
Reinforcement: Four high tensile steel wire spirals
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion
Temperature Range:
Continuous: -40°C to +100°C
Intermittent: max. 120°C
Last Update : 13/11/2024
RUBBER STEAM HOSE PH472 STEAM 2 W/B HOSE - EPDM RUBBER RESISTANT HIGH TEMPERATURE STEAM
Application: High temparature steam lines at constant pressure of 250 psi.
Applicable Standard: Standard: IS 10655 Type 3/BS 5342.
Construction:
Core: EPDM rubber resistant high temperature steam
Reinforcement: Double steel wire braids
Cover: Black color, EPDM rubber resistant to abrasion, heat and weather
Temperature Range: Upto +205°C
Last Update : 13/11/2024
MULTIPURPOSE HOSE PH368 / POLYESTER TEXTILE YARM BRAIDING
Application: Polyhose PropLow working Pressure for various kinds of application. The Hose can be used with Air,Gas,Water, and Petroleum, Synthetic or Water based fluids, Suitable for agricultural Automotives, and General industrial purposes
Applicable Standard: Polyhose proprietary Product SAE
Construction:
Core: Black Plasticized PVC
Reinforcement: Polyester textile yarm braiding.
Cover: red Color, Abrasion Resistance thermoTemperature Range:
Continuous: -40°C to +60°C
Last Update : 13/11/2024
HYDRAULIC HOSE PH277 - SPIRAL HOSE. EN 856 / 4SP VERY HIGH PRESSURE HYDRAULIC LINES 165 TO 450 BAR
Application: Very high pressure Hydraulic Lines 165 to 450 bar and hydrostatic transmission lines For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Earthmoving & Material handling equipments and machineries/systems
Applicable Standard: Standard: EN 856-4SP
Construction:
Core: Oil and Water resistant Synthetic rubber
Reinforcement: Four high tensile steel wire spirals
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion
Temperature Range:
Continuous: -40°C to +100°C
Intermittent: max. 120°C
Last Update : 13/11/2024
O-RING KITS (Available in Nitrile-NBR 70 / 90 ShA and Viton 75 ShA)
O-Ring Kit 1 (AS568) :382 O-Rings in 30 different imperial sizes
O-Ring Kit 2 (JIS) :391 O-Rings in 30 different JIS sizes
O-Ring Kit 3 (AS568) :407 O-Rings in 32 different imperial sizes
O-Ring Kit 4 (Metric) : 408 O-Rings in 32 different metric sizes
O-Ring Kit 5 (AS568/3-9XX) : 212 O-Rings in 20 different imperial sizes
Last Update : 03/03/2017
Nylon Tube
● Excellent in weather resistance
● Good aging
● Resists abrasion and vibration
● High tensile strength and modulus of elasticity
● High impact resistance, a high heat distortion temperature
● Can withstand contact with chemicals, alkalis, dilute acids or oxidizing agents
Application
For Hydraulic Hoses, Robotics, and Vacuum, Fuel, Vapor, Air and Brake lines. Its Heat Resistance and UV Stabilization Make it Resistant to Stress-Cracking, So it Works Well in Sunny Areas.
Last Update : 08/11/2016
PolyurethaneTube
● High flexibility
● Small bending radius
● Widely used in many applications
● Available in ether and ester types
● Optimum abrasion resistance
● High tensile strength
● Low temperature flexibility
Application
Automated machinery, coating machinery, all kinds of pneumatic tools, pneumatic & hydraulic machinery, construction and various pneumatic tools. Polyether based polyurethane tube is hydrolysis-resistant, anti-bacterial & anti-fungous, and it can be used for gardening, cleaning, water hoses and other purposes. Ether type polyurethane tube is resistance to hydrolysis, fungus and weatherability. Ester type polyurethane tube give maximum abrasion resistance and good oil, solvent and great resistance.
Last Update : 08/11/2016
FLEXIBLE PVC SPIRAL STEEL WIRE REINFORCED HOSE OR FLEXIBLE PVC SUPER SUN SPRING HOSE: SUPER SUN SPRING HOSE.
With hard steel wires put inside, this hose withstands to decompression, which is appropriate for vacuuming applications.Superior in transparency, this hose is appropriate for piping of operating oil
Last Update : 08/11/2016
POFPO Rubber flexible joint are desi gned for tough demanding indusreial application,as found in : Air conditioning-heating and ventilating systems,chemical-petrochemical and industrial process piping systems. Power generating systems, marine service, pulp & paper systems,water-wastewater sewage and pollution control system. Instsalled next to mechanical equiment or between the anchor point of piping system. Specify the POFPO Rubber flexible joint to :
1.Absorb pipe/movement/stress
2. Decrease systems noise
3. Isolate Vibration
4. Compensate alignment/offset
5. Eliminate electrolysis
6. Protect against start up,Surge forces
Features:
-Vibration,Sound And Shock Absorption
-Higher Burst Strength
-Greater Recovery From Movement
-Free From Corrosion
-Security Assured In Usage
-Low Deformation Under Pressure
-Suitable For Suction And Delivery
-Greater Movements are Availlable
Last Update : 23/09/2016
TUBE AND BRAID AVAILABLE : SUS304/SUS316, BRAIDED MESH LAYER : SINGLE LAYER
ท่ออ่อนสแตนเลส เกรด 304 ขนาดใหญ่ ใช้สำหรับงานประปา งานชลประทาน งานน้ำทั่วไป งานสตรีม DN100(4") - DN600 (24") (inch) stainless steel flexible hose with flange fitting :
1.Excellent Flexibility 2.Resistance to Corrosion
3.High Temperat
6"- 16" (Inch) Stainless Steel Flexible Hose With Flange Fitting:
1 High Physical Strength With Light Weight.
2 A Long UsaGe Life.
3 Good Corrosion Characteristics, Resistance to Fire,Moisture, Abrasion and Penetration.
4 Flexibility Making it Good For Static Installations or Even Where There is Constant Flexing in The Application
5 Absorbs Vibration and Noise From Pumps, Compressors, Engines Etc.
6 Compensates For Thermal Expansion and Contraction of Piping.
7 Corrects Problems of Misalignment.
8 A Flexible and Quick Alternative For Rigid Piping in Difficult Locations.
- Iron & Steel Industry (อุตสาหกรรมเหล็กและเหล็กกล้า)
- Petroleum and Gas Plants (ปิโตรเลียมและก๊าซ)
- Chemistry industry (พืชอุตสาหกรรมเคมี)
- Heating and cooling systems (ร้อนและระบบระบายความร้อน)
- Food industry (อุตสาหกรรมอาหาร)
- Automotive industry (อุตสาหกรรมยานยนต์)
- Paper production plants (โรงงานผลิตกระดาษ)
- Maritime industry (อุตสาหกรรมการเดินเรือ)
- Defence industry (อุตสาหกรรมกลาโหม)
- Moving systems (ระบบการย้าย)
- Any kind of depot and tank connections (ชนิดของคลังและการเชื่อมต่อถัง)
Last Update : 22/09/2016
FLEXIBLE HOSE CORRUGATED ANNULAR SUS304, SUS321, SUS316 TYPE. FLANGE WITH END FIXED + FREE SIDE : DN15 (1/2”) – DN.300 (12")
Flexible Stainless Steel Hoses Seal
Flexible stainless steel hose (sleeves) sealed, are designed for transportation of liquid and gaseous media, for water, steam, condensate, gas and petroleum products, chemical products. Operate in extreme conditions, operating pressures and temperatures.
Spiral shaped convolution spiral advance profiled steel band with subsequent contact and seam welding. They have a diameter of 6 mm to 300 mm and lengths from 250 to 6000 mm. For the production of this type of hose used stainless strip thickness 0,15-0,40 mm.
High-quality steel airtight hose is not advisable to use in systems with a high level of vibration as the exploitation of metal hoses in such conditions leads to a resonant vibration of the corrugations or shells entirely.
Spiral represented by two species - rolled and corrugated variations. Corrugated metal oloruka made of seamless or longitudinally welded thin-walled tubes, which are formed by special mechanical or hydraulic devices and supplied with end fittings. They are used as low-cost flexible connecting elements as loading hoses and of movement, thermal expansion, vibration absorption.
Corrugated metal hose is completely waterproof, can be used to transfer liquids and gases under high pressure. In addition, the hose to the valve can be used in vacuum systems.
Addition weld metal hoses we supply hoses with flange with thread.
Due to the high reliability and durability to impacts flexible connection was in demand in the market pipelines and has been widely used in the automotive, aerospace, shipbuilding, metallurgy, petroleum, chemical, food, medical industry and many other industries.
Last Update : 22/09/2016
สินค้าขายดี (Best Selling)
TEFLON (PTFE) HOSE PH370 CONVOLUTED / PH371 CONVOLUTED CONDUCTIVE
Aplication: P.T.F.E. hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in applications where all or one of the above properties is the main criteria in automotive, chemical, pharmaceutical & food processing, plastic & rubber molding machines. Also, for some applications the tube can also be made conductive to dissipate electro-static Charges.
Applicable Standard: Standard: Polyhose proprietary product.
Construction:
Core: Helically convoluted sintered tube of polytetrafluoroethylene (P.T.F.E.).
Reinforcement: Single braid of 304/316 series of stainless steel wire
Temperature Range:
Continuous: -54°C to +260°C
Last Update : 19/11/2024
TEFLON (PTFE) HOSE PH179 - SAE J517 100R14 SMOOTH BORE PTFE HOSE
Application: P.T.F.E hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficent of friction and resists deterioration. Therefore the hose is used generally in applications where all are one of the above properties is the main criteria.
Applicable Standard: Standard: SAE J517 – 100R14
Construction:
Core: Sintered tube of polytetrafluoroethylene (P.T.F.E.).
Reinforcement: Single braid of 303/304 series of stainless steel wire
Temperature Range:
Continuous: -54°C to +260°C
Last Update : 19/11/2024
HYDRAULIC HOSE PH154 - SAE J517-100-R2 / EN 853 2SN HIGH PRESSURE HYDRAULIC LINES 80 TO 415 BAR
Application: High Pressure Hydraulic Lines 80 to 415 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems.
Applicable Standard: Standard: SAE J517 – 100 R2 / EN 853-2SN
Construction:
Core: Oil & water resistant Synthetic rubber
Reinforcement: Double steel wire braids
Cover: Black Color, Synthetic rubber resistant to weather and abrasion ,oil & ozone
Temperature Range:
Continuous: -40°C to +120°C
Impulse Cycles : 200,000
Tested upto: 400,000 cycles,upto 1” I.D.
Last Update : 14/11/2024
HYDRAULIC HOSE PH153 - SAE J517-100-R1 / EN 853 1SN MEDIUM PRESSURE HYDRAULIC LINES 40 TO 250 BAR
Application: MEDIUM Pressure Hydraulic Lines 40 to 250 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems
Applicable Standard: Standard: SAE J517 – 100 R1 / EN 8531SN
Construction:
Core: Oil & water resistant Synthetic rubber
Reinforcement: Single steel wire braid
Cover: Black Color, Synthetic rubber resistant to weather and abrasion, oil & ozone.
Temperature Range:
Continuous: -40°C to +120°C
Impulse Cycles : 150,000
Tested upto: 300,000 cycles, upto 1I.D.
Last Update : 14/11/2024
HYDRAULIC HOSE PH146 - SAE J517-100-R5 MEDIUM PRESSURE HYDRAULIC LINES 25 TO 210 BAR
Application: MEDIUM Pressure Hydraulic Lines 25 to 210 bar.
For use with fluids in Hydraulic systems Can also be used in air and water. Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems
Applicable Standard: Standard: SAE J517 – 100 R5
Construction:
Core: Oil and Water resistant Synthetic rubber
Reinforcement: Single steel wire braid
Cover: Black Color, single braid of textile fiber
Temperature Range: Continuous: -40°C to +120°C
Last Update : 14/11/2024
PH144 - SAE J517 - 100 R3 / EN 854: Standard Hydraulic Hose – Rubber
HYDRAULIC HOSE PH144 - SAE J517-100-R3 / EN 854 /LOW PRESSURE AND LOW IMPULSE HYDRAULIC LINES 30 TO 110 BAR
Application:
Low pressure and low impulse hydraulic lines 30 to 110 bar.for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Construction & Material handiling equipments and machineries/systems.
Applicable Standard: Standard: SAE J517 – 100 R3 / EN 854
Construction:
Core: Oil resistant Synthetic rubber
Reinforcement: Double fiber braids
Cover:Black Color, Synthetic rubber resistant weather and abrasion
Temperature Range:Continuous: -40°C to +120°C
PH144 - SAE J517 - 100 R3 / EN 854: สายไฮดรอลิกมาตรฐาน – ยาง
สายไฮดรอลิก PH144 - SAE J517-100-R3 / EN 854 / สายไฮดรอลิกแรงดันต่ำและแรงกระตุ้นต่ำ 30 ถึง 110 บาร์
การใช้งาน:
สายไฮดรอลิกแรงดันต่ำและแรงกระตุ้นต่ำ 30 ถึง 110 บาร์ สำหรับใช้กับน้ำมันปิโตรเลียม สังเคราะห์ หรือของเหลวที่ใช้กับน้ำในระบบไฮดรอลิก เหมาะสำหรับอุปกรณ์และเครื่องจักร/ระบบการจัดการวัสดุทางการเกษตร การก่อสร้าง และการจัดการวัสดุ
มาตรฐานที่ใช้บังคับ: มาตรฐาน: SAE J517 - 100 R3 / EN 854
โครงสร้าง:
แกนกลาง : ยางสังเคราะห์ทนน้ำมัน
การเสริมแรง: เส้นใยคู่ถักเปีย
ปลอก: สีดำ ยางสังเคราะห์ทนต่อสภาพอากาศและการขีดข่วน
ช่วงอุณหภูมิ: ต่อเนื่อง: -40°C ถึง +120°C
Last Update : 14/11/2024
HYDRAULIC HOSE PH147 - SAE J517-100-R6 / EN 854 / VERY LOW PRESSURE AND LOW IMPULSE HYDRAULIC LINES 20 TO 35 BAR
Application: Very low pressure and low impulse hydraulic lines 20 to 35 bar.for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Stationary equipments and hydraulic systems.
Applicable Standard: Standard: SAE J517 – 100 R6 / EN 854
Construction:
Core: Oil resistant Synthetic rubber
Reinforcement: Single fiber braid
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion
Temperature Range: Continuous: -40°C to +120°C
Last Update : 14/11/2024
HYDRAULIC HOSE PH278 - SPIRAL HOSE. EN 856 / 4SH /VERY HIGH PRESSURE HYDR.LINES 250 TO 420 BAR
Application: Very high pressure Hydraulic Lines 250 to 420 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Eathmoving & Material handling equipemtns and machineries/systems.
Applicable Standard: Standard: EN 856-4SH
Construction:
Core: Oil and Water resistant Synthetic rubber
Reinforcement: Four high tensile steel wire spirals
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion
Temperature Range:
Continuous: -40°C to +100°C
Intermittent: max. 120°C
Last Update : 13/11/2024
RUBBER STEAM HOSE PH472 STEAM 2 W/B HOSE - EPDM RUBBER RESISTANT HIGH TEMPERATURE STEAM
Application: High temparature steam lines at constant pressure of 250 psi.
Applicable Standard: Standard: IS 10655 Type 3/BS 5342.
Construction:
Core: EPDM rubber resistant high temperature steam
Reinforcement: Double steel wire braids
Cover: Black color, EPDM rubber resistant to abrasion, heat and weather
Temperature Range: Upto +205°C
Last Update : 13/11/2024
MULTIPURPOSE HOSE PH368 / POLYESTER TEXTILE YARM BRAIDING
Application: Polyhose PropLow working Pressure for various kinds of application. The Hose can be used with Air,Gas,Water, and Petroleum, Synthetic or Water based fluids, Suitable for agricultural Automotives, and General industrial purposes
Applicable Standard: Polyhose proprietary Product SAE
Construction:
Core: Black Plasticized PVC
Reinforcement: Polyester textile yarm braiding.
Cover: red Color, Abrasion Resistance thermoTemperature Range:
Continuous: -40°C to +60°C
Last Update : 13/11/2024
HYDRAULIC HOSE PH277 - SPIRAL HOSE. EN 856 / 4SP VERY HIGH PRESSURE HYDRAULIC LINES 165 TO 450 BAR
Application: Very high pressure Hydraulic Lines 165 to 450 bar and hydrostatic transmission lines For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Earthmoving & Material handling equipments and machineries/systems
Applicable Standard: Standard: EN 856-4SP
Construction:
Core: Oil and Water resistant Synthetic rubber
Reinforcement: Four high tensile steel wire spirals
Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion
Temperature Range:
Continuous: -40°C to +100°C
Intermittent: max. 120°C
Last Update : 13/11/2024
O-RING KITS (Available in Nitrile-NBR 70 / 90 ShA and Viton 75 ShA)
O-Ring Kit 1 (AS568) :382 O-Rings in 30 different imperial sizes
O-Ring Kit 2 (JIS) :391 O-Rings in 30 different JIS sizes
O-Ring Kit 3 (AS568) :407 O-Rings in 32 different imperial sizes
O-Ring Kit 4 (Metric) : 408 O-Rings in 32 different metric sizes
O-Ring Kit 5 (AS568/3-9XX) : 212 O-Rings in 20 different imperial sizes
Last Update : 03/03/2017
Nylon Tube
● Excellent in weather resistance
● Good aging
● Resists abrasion and vibration
● High tensile strength and modulus of elasticity
● High impact resistance, a high heat distortion temperature
● Can withstand contact with chemicals, alkalis, dilute acids or oxidizing agents
Application
For Hydraulic Hoses, Robotics, and Vacuum, Fuel, Vapor, Air and Brake lines. Its Heat Resistance and UV Stabilization Make it Resistant to Stress-Cracking, So it Works Well in Sunny Areas.
Last Update : 08/11/2016
PolyurethaneTube
● High flexibility
● Small bending radius
● Widely used in many applications
● Available in ether and ester types
● Optimum abrasion resistance
● High tensile strength
● Low temperature flexibility
Application
Automated machinery, coating machinery, all kinds of pneumatic tools, pneumatic & hydraulic machinery, construction and various pneumatic tools. Polyether based polyurethane tube is hydrolysis-resistant, anti-bacterial & anti-fungous, and it can be used for gardening, cleaning, water hoses and other purposes. Ether type polyurethane tube is resistance to hydrolysis, fungus and weatherability. Ester type polyurethane tube give maximum abrasion resistance and good oil, solvent and great resistance.
Last Update : 08/11/2016
FLEXIBLE PVC SPIRAL STEEL WIRE REINFORCED HOSE OR FLEXIBLE PVC SUPER SUN SPRING HOSE: SUPER SUN SPRING HOSE.
With hard steel wires put inside, this hose withstands to decompression, which is appropriate for vacuuming applications.Superior in transparency, this hose is appropriate for piping of operating oil
Last Update : 08/11/2016
POFPO Rubber flexible joint are desi gned for tough demanding indusreial application,as found in : Air conditioning-heating and ventilating systems,chemical-petrochemical and industrial process piping systems. Power generating systems, marine service, pulp & paper systems,water-wastewater sewage and pollution control system. Instsalled next to mechanical equiment or between the anchor point of piping system. Specify the POFPO Rubber flexible joint to :
1.Absorb pipe/movement/stress
2. Decrease systems noise
3. Isolate Vibration
4. Compensate alignment/offset
5. Eliminate electrolysis
6. Protect against start up,Surge forces
Features:
-Vibration,Sound And Shock Absorption
-Higher Burst Strength
-Greater Recovery From Movement
-Free From Corrosion
-Security Assured In Usage
-Low Deformation Under Pressure
-Suitable For Suction And Delivery
-Greater Movements are Availlable
Last Update : 23/09/2016
TUBE AND BRAID AVAILABLE : SUS304/SUS316, BRAIDED MESH LAYER : SINGLE LAYER
ท่ออ่อนสแตนเลส เกรด 304 ขนาดใหญ่ ใช้สำหรับงานประปา งานชลประทาน งานน้ำทั่วไป งานสตรีม DN100(4") - DN600 (24") (inch) stainless steel flexible hose with flange fitting :
1.Excellent Flexibility 2.Resistance to Corrosion
3.High Temperat
6"- 16" (Inch) Stainless Steel Flexible Hose With Flange Fitting:
1 High Physical Strength With Light Weight.
2 A Long UsaGe Life.
3 Good Corrosion Characteristics, Resistance to Fire,Moisture, Abrasion and Penetration.
4 Flexibility Making it Good For Static Installations or Even Where There is Constant Flexing in The Application
5 Absorbs Vibration and Noise From Pumps, Compressors, Engines Etc.
6 Compensates For Thermal Expansion and Contraction of Piping.
7 Corrects Problems of Misalignment.
8 A Flexible and Quick Alternative For Rigid Piping in Difficult Locations.
- Iron & Steel Industry (อุตสาหกรรมเหล็กและเหล็กกล้า)
- Petroleum and Gas Plants (ปิโตรเลียมและก๊าซ)
- Chemistry industry (พืชอุตสาหกรรมเคมี)
- Heating and cooling systems (ร้อนและระบบระบายความร้อน)
- Food industry (อุตสาหกรรมอาหาร)
- Automotive industry (อุตสาหกรรมยานยนต์)
- Paper production plants (โรงงานผลิตกระดาษ)
- Maritime industry (อุตสาหกรรมการเดินเรือ)
- Defence industry (อุตสาหกรรมกลาโหม)
- Moving systems (ระบบการย้าย)
- Any kind of depot and tank connections (ชนิดของคลังและการเชื่อมต่อถัง)
Last Update : 22/09/2016
FLEXIBLE HOSE CORRUGATED ANNULAR SUS304, SUS321, SUS316 TYPE. FLANGE WITH END FIXED + FREE SIDE : DN15 (1/2”) – DN.300 (12")
Flexible Stainless Steel Hoses Seal
Flexible stainless steel hose (sleeves) sealed, are designed for transportation of liquid and gaseous media, for water, steam, condensate, gas and petroleum products, chemical products. Operate in extreme conditions, operating pressures and temperatures.
Spiral shaped convolution spiral advance profiled steel band with subsequent contact and seam welding. They have a diameter of 6 mm to 300 mm and lengths from 250 to 6000 mm. For the production of this type of hose used stainless strip thickness 0,15-0,40 mm.
High-quality steel airtight hose is not advisable to use in systems with a high level of vibration as the exploitation of metal hoses in such conditions leads to a resonant vibration of the corrugations or shells entirely.
Spiral represented by two species - rolled and corrugated variations. Corrugated metal oloruka made of seamless or longitudinally welded thin-walled tubes, which are formed by special mechanical or hydraulic devices and supplied with end fittings. They are used as low-cost flexible connecting elements as loading hoses and of movement, thermal expansion, vibration absorption.
Corrugated metal hose is completely waterproof, can be used to transfer liquids and gases under high pressure. In addition, the hose to the valve can be used in vacuum systems.
Addition weld metal hoses we supply hoses with flange with thread.
Due to the high reliability and durability to impacts flexible connection was in demand in the market pipelines and has been widely used in the automotive, aerospace, shipbuilding, metallurgy, petroleum, chemical, food, medical industry and many other industries.
Last Update : 22/09/2016
