บริษัท ออโต้ เอ พลัส จำกัด : THERMOPLASTIC PAINT SPRAY HOSE PH342 W/P.1.00 BAR AIRLESS PAINT SPRAY SYSTEMS FOR 120 TO 350 BAR

PAGE VIEW : 6,746

Product Information :

Name :

THERMOPLASTIC PAINT SPRAY HOSE PH342 W/P.1.00 BAR AIRLESS PAINT SPRAY SYSTEMS FOR 120 TO 350 BAR - SINGLE STEEL WIRE BRAID

Category :

รถยนต์และชิ้นส่วนที่เกี่ยวกับรถยนต์

Sub - Category :

Thermoplastic Hose:Explore our wide range of Thermoplastic hoses suitable for sewerjet, paint spray, greasing and lubricant applications, microbore, pilot line and more.

Brand :

POLYHOSE

Product Type :

สินค้า, ผลิตภัณฑ์

Short Description :

THERMOPLASTIC PAINT SPRAY HOSE PH342 W/P.1.00 BAR AIRLESS PAINT SPRAY SYSTEMS FOR 120 TO 350 BAR - SINGLE STEEL WIRE BRAID Application: Airless paint spray systems for 120 to 350 bar. Suitable for applications requiring chemical resistance to solvents and aggressive fluids due to low permeation value of polyamide, the hose is also suitable for industrial gases. Applicable Standard: Standard: Polyhose proprietary Hose. Construction: Core: Polyamide Reinforcement: Single steel wire braid Cover: Blue color Polyurethane and optional pin pricked. Temperature Range: Continuous: -40°C to +100°C Temp not to exceed +70°C for Air and water based fluids.

Product Detail :

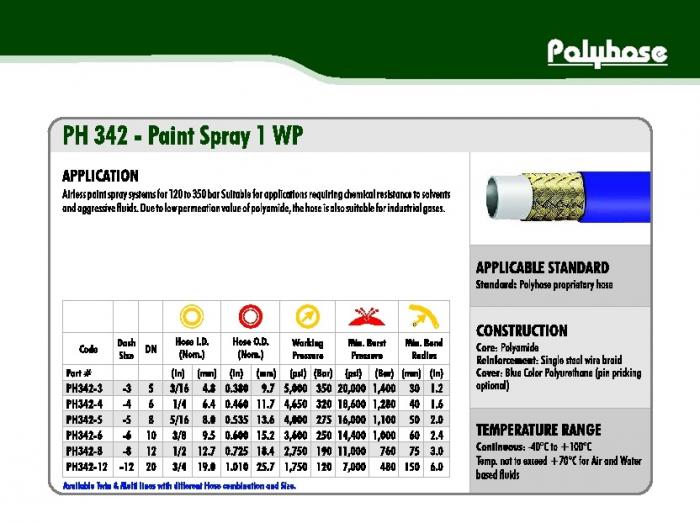

PH342 – Polyhose proprietary product: Paint Spray Hose w.p.1.00 bar

THERMOPLASTIC PAINT SPRAY HOSE PH342 W/P.1.00 BAR AIRLESS PAINT SPRAY SYSTEMS FOR 120 TO 350 BAR - SINGLE STEEL WIRE BRAID

Application: Airless paint spray systems for 120 to 350 bar.

Suitable for applications requiring chemical resistance to solvents and aggressive fluids due to low permeation value of polyamide, the hose is also suitable for industrial gases.

Applicable Standard: Standard: Polyhose proprietary Hose.

Construction:

Core: Polyamide

Reinforcement: Single steel wire braid

Cover: Blue color Polyurethane and optional pin pricked.

Temperature Range: Continuous: -40°C to +100°C Temp not to exceed +70°C for Air and water based fluids.
