E-Catalog > Thermoplastic Hose:Explore our wide range of Thermoplastic hoses suitable for sewerjet, paint spray, greasing and lubricant applications, microbore, pilot line and more. > THERMOPLASTIC HYDRAULIC HOSE PH350 / PH351 VERY H/P JACK HOSE HYDRAULIC LINES 520 TO 700 BAR

PAGE VIEW : 6,896

Product Information :

Name :
THERMOPLASTIC HYDRAULIC HOSE PH350 / PH351 VERY H/P JACK HOSE HYDRAULIC LINES 520 TO 700 BAR
Category :
  1. รถยนต์และชิ้นส่วนที่เกี่ยวกับรถยนต์
Sub - Category :
  1. Thermoplastic Hose:Explore our wide range of Thermoplastic hoses suitable for sewerjet, paint spray, greasing and lubricant applications, microbore, pilot line and more.
Brand :
POLYHOSE
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
THERMOPLASTIC HYDRAULIC HOSE PH350 / PH351 VERY H/P JACK HOSE HYDRAULIC LINES 520 TO 700 BAR Application: Very High Pressure Hydraulic Lines 520 to 700 bar. Compact, high pressure, light weight, high abrasion resistance and low change in length for use with petroleum, synthetic or water based fluids in Hydraulic Systems mainly used for rescue, safety equipments, bolt tensioning tools and jacking & re-railing equipments. Also, suitable for earthmoving and material handling equipments. Applicable Standard: Standard: Polyhose proprietary hose. Construction: Core: Thermoplastic Elastomer Reinforcement:PH350 Double steel wire braids, PH351 Single/Double braids of aramid fibre with single steel wire braid Cover:Red/Orange color Polyurethane, Available Twin & Multi lines with different Hose combination and size. Temperature Range: Continuous: -40°C to +100°C Temp not to exceed +70°C for Air and water based fluids.

Product Detail :

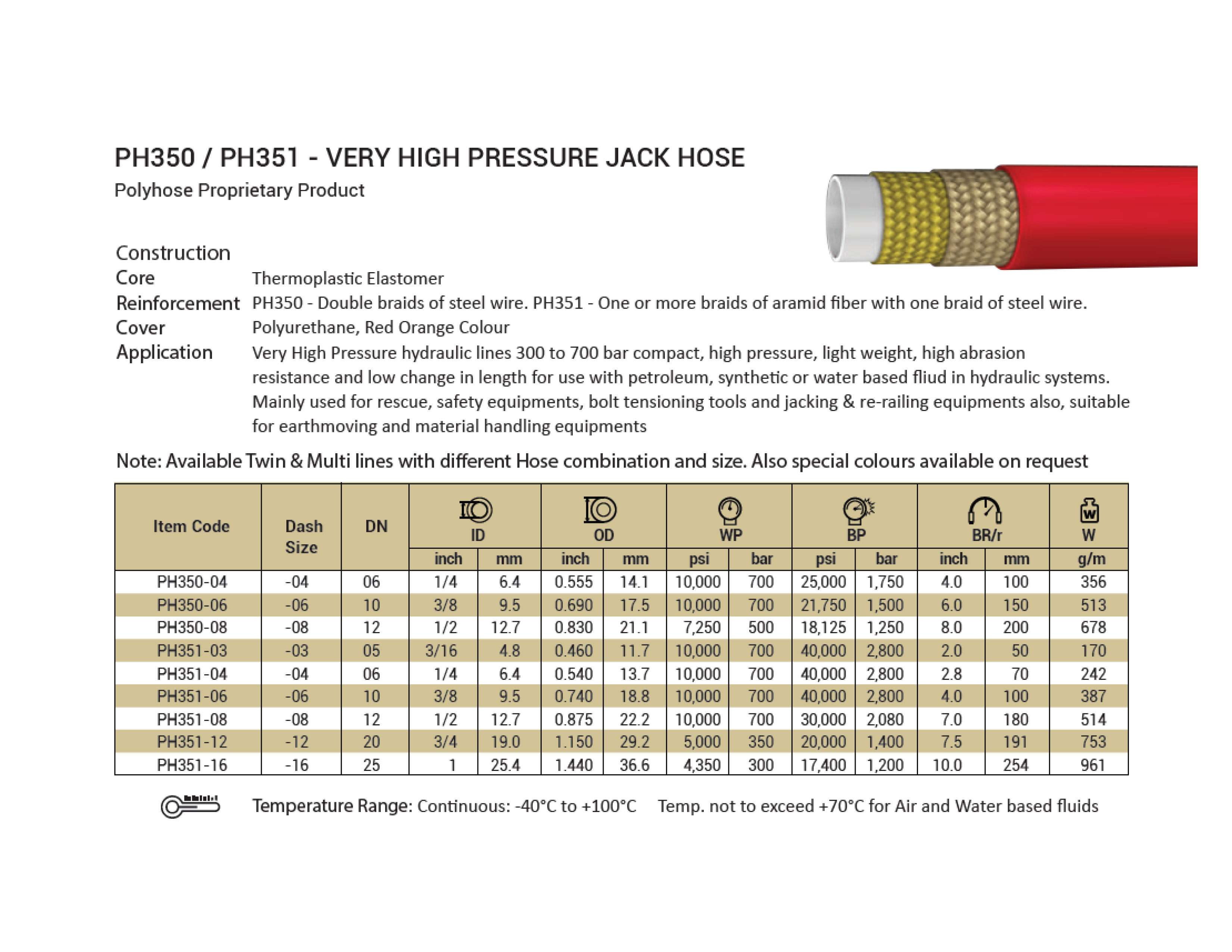

    PH350 / PH351 – VERY HIGH PRESSURE JACK HOSE

    THERMOPLASTIC HYDRAULIC HOSE PH350 / PH351 VERY H/P JACK HOSE HYDRAULIC LINES 520 TO 700 BAR

     Application: Very High Pressure Hydraulic Lines 520 to 700 bar.

Compact, high pressure, light weight, high abrasion resistance and low change in length for use with petroleum, synthetic or water based fluids in Hydraulic Systems mainly used for rescue, safety equipments, bolt tensioning tools and jacking & re-railing equipments. Also, suitable for earthmoving and material handling equipments.

    Applicable Standard: Standard Polyhose proprietary hose.

    Construction:

                        Core: Thermoplastic Elastomer

                        Reinforcement:PH350 Double steel wire braids, PH351 Single/Double braids of aramid fibre with single steel wire braid

                        Cover: Red/Orange color Polyurethane, Available Twin & Multi lines with different Hose combination and size.

                        Temperature Range: Continuous: -40°C to +100°C Temp not to exceed +70°C for Air and water based fluids.
