E-Catalog > Stainless Steel Flexible Hoses and Metal Hose:SUS304,SUS316 > Flexible Stainless Steel Hoses :SUS304,SUS321,SUS316
PAGE VIEW : 21,992
Product Information :
Name :
Flexible Stainless Steel Hoses :SUS304,SUS321,SUS316 Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- Stainless Steel Flexible Hoses and Metal Hose:SUS304,SUS316
Brand :
AUTOFLEX Product Type :
- เครื่องมือ, เครื่องจักรและอุปกรณ์
- บริการ
- วัตถุดิบ
- สินค้า, ผลิตภัณฑ์
Short Description :
Flexible Stainless Steel Hoses Seal
Flexible stainless steel hose (sleeves) sealed, are designed for transportation of liquid and gaseous media, for water, steam, condensate, gas and petroleum products, chemical products. Operate in extreme conditions, operating pressures and temperatures.
Spiral shaped convolution spiral advance profiled steel band with subsequent contact and seam welding. They have a diameter of 6 mm to 300 mm and lengths from 250 to 6000 mm. For the production of this type of hose used stainless strip thickness 0,15-0,40 mm.
High-quality steel airtight hose is not advisable to use in systems with a high level of vibration as the exploitation of metal hoses in such conditions leads to a resonant vibration of the corrugations or shells entirely.
Spiral represented by two species - rolled and corrugated variations. Corrugated metal oloruka made of seamless or longitudinally welded thin-walled tubes, which are formed by special mechanical or hydraulic devices and supplied with end fittings. They are used as low-cost flexible connecting elements as loading hoses and of movement, thermal expansion, vibration absorption.
Corrugated metal hose is completely waterproof, can be used to transfer liquids and gases under high pressure. In addition, the hose to the valve can be used in vacuum systems.
Addition weld metal hoses we supply hoses with flange with thread.
Due to the high reliability and durability to impacts flexible connection was in demand in the market pipelines and has been widely used in the automotive, aerospace, shipbuilding, metallurgy, petroleum, chemical, food, medical industry and many other industries.
Product Detail :

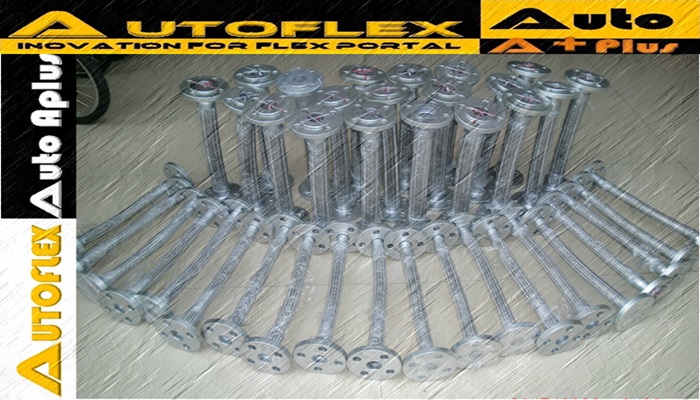

Flexible Stainless Steel Hoses Seal
Flexible stainless steel hose (sleeves) sealed, are designed for transportation of liquid and gaseous media, for water, steam, condensate, gas and petroleum products, chemical products. Operate in extreme conditions, operating pressures and temperatures.
Spiral shaped convolution spiral advance profiled steel band with subsequent contact and seam welding. They have a diameter of 6 mm to 300 mm and lengths from 250 to 6000 mm. For the production of this type of hose used stainless strip thickness 0,15-0,40 mm.
High-quality steel airtight hose is not advisable to use in systems with a high level of vibration as the exploitation of metal hoses in such conditions leads to a resonant vibration of the corrugations or shells entirely.
Spiral represented by two species - rolled and corrugated variations. Corrugated metal oloruka made of seamless or longitudinally welded thin-walled tubes, which are formed by special mechanical or hydraulic devices and supplied with end fittings. They are used as low-cost flexible connecting elements as loading hoses and of movement, thermal expansion, vibration absorption.
Corrugated metal hose is completely waterproof, can be used to transfer liquids and gases under high pressure. In addition, the hose to the valve can be used in vacuum systems.
Addition weld metal hoses we supply hoses with flange with thread.
Due to the high reliability and durability to impacts flexible connection was in demand in the market pipelines and has been widely used in the automotive, aerospace, shipbuilding, metallurgy, petroleum, chemical, food, medical industry and many other industries.
Specifications of metal hoses:
Conventional diameter: DN 6 to 300 mm;
Working pressure: from vacuum up to 800 bar;
Fluid pressure: PN up to 200 kg/cm²;
Operating temperature: from -260 to 800° С;
Medium: water, steam, gas, air, oil, corrosive media;
Connection type: welded, flanged, threaded;
Braided and without braiding.
Purpose of metal hoses:
- transportation of various media, including aggressive;
- the removal of vibration loads;
- interfacing elements of pipelines.

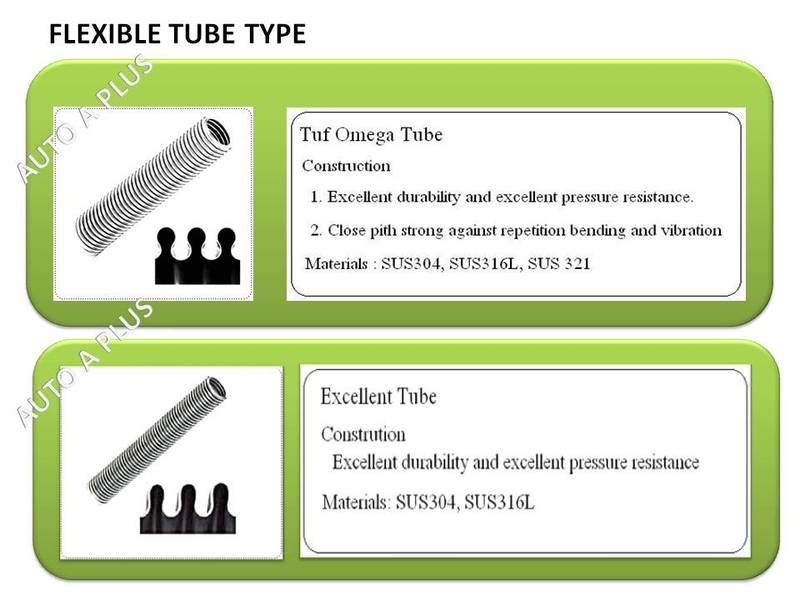

The main types of flexible metal hoses made of stainless steel:
- with narrow corrugation;
- with the average corrugation;
- with a wide ripple;
- for boilers;
- high-pressure (MRVD).
Hose equipped with connections to customer. Connections are available in various designs and are made of different material.

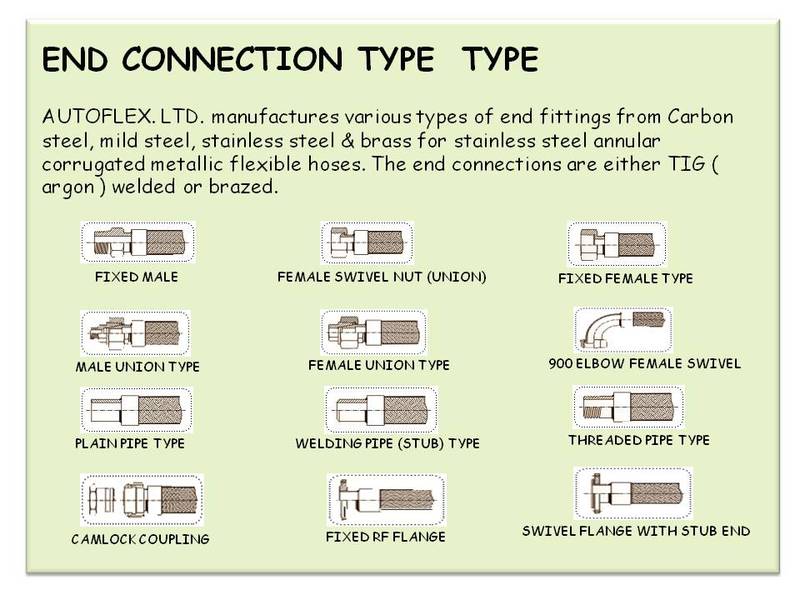

Fittings of metal hoses:
- welded
- with a blind flange;
- with a rotating flange;
- with a rotating flange with collar;
- screwed fixed nipple with male thread;
- screwed fixed sleeve with internal thread;
- screwed with rolling ball fitting with nut;
- screwed rotating, with seal;
- screwed fixed coupling of cast iron with an internal thread;
- connection with the union, without the nuts.
