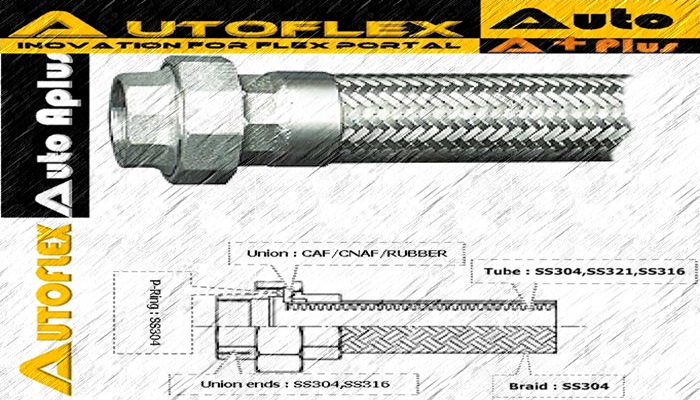

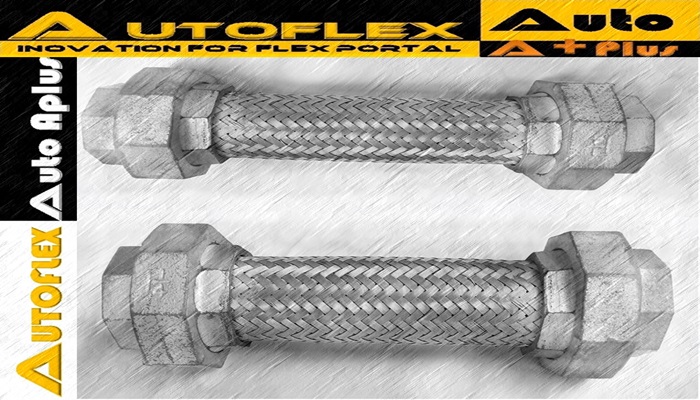

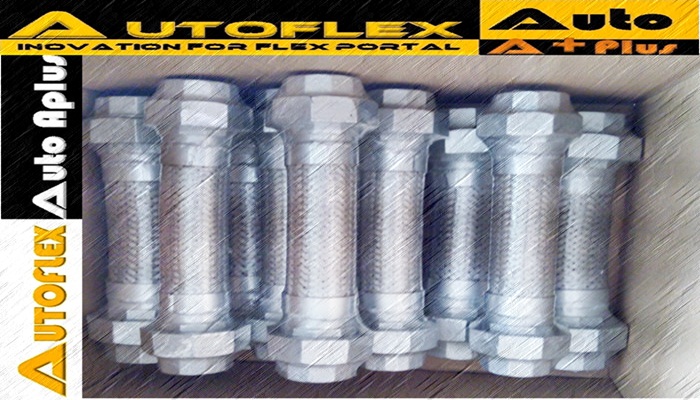

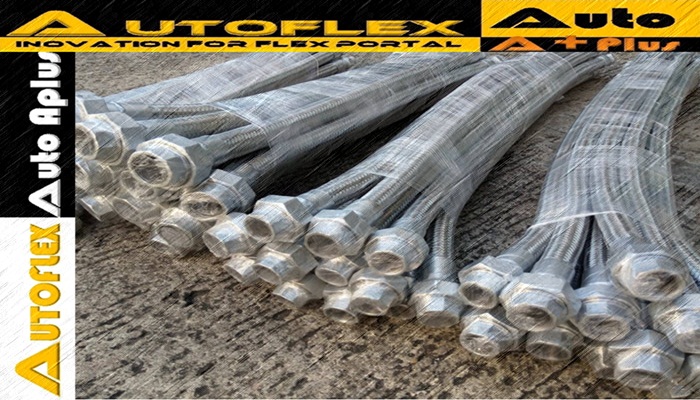

E-Catalog > Stainless Steel Flexible Hoses and Metal Hose:SUS304,SUS316 > FLEXIBLE HOSE SUS304 - UNION SUS304, SUS316, UNION GALVANIZED (ยูเนี่ยนต่อท่อประปาเหล็ก) WITH CONNECTION UNION 2 SIDE

HYDRAULIC HOSE PH147 - SAE J517-100-R6 / EN 854 / VERY LOW PRESSURE AND LOW IMPULSE HYDRAULIC LINES 20 TO 35 BAR Application: Very low pressure and low impulse hydraulic lines 20 to 35 bar.for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural, Stationary equipments and hydraulic systems. Applicable Standard: Standard: SAE J517 – 100 R6 / EN 854 Construction: Core: Oil resistant Synthetic rubber Reinforcement: Single fiber braid Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion Temperature Range: Continuous: -40°C to +120°C

THERMOPLASTIC HYDRAULIC HOSE PH148 - SAE 100R7 / DIN EN855 MEDIUM PRESSURE HYDRAULIC LINES 70 TO 210 BAR Application: Medium Pressure Hydraulic Lines 70 to 210 bar. Suitable for Hydraulic application with increased resistance to abrasion. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Articulating & Telescopic booms and Material handling equipments. Can be used for industrial gases and other applications, please consult manufacturer. Applicable Standard: tandard: SAE 100 R7 / DIN EN 855 Construction: Core: Thermoplastic Elastomer Reinforcement: 1 braid of synthetic fibre Cover: Black color, Pin Pricked – Polyurethane. Available twin and multi lines with different hose combination and size. Also, special colors up on request. Temperature Range: Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids

THERMOPLASTIC HYDRAULIC HOSE PH149 - SAE 100R8 / DIN EN855 HIGH PRESSURE HYDRAULIC LINES 100 TO 420 BAR Application: Highpressure Hydraulic Lines 100 to 420 bar. Compact, high pressure, light weight and low change in length. Suitable for hydraulic application with increased resistance to abrasion. For use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Safety, Rescue and material handling equipments. Can be used for industrial gase and other applications, please consult manufacturer. Applicable Standard: Standard: SAE 100 R8 / DIN EN 855 Construction: Core: Thermoplastic Elastomer Reinforcement: 1 or 2 braid of Aramid fibre Cover: Black color, Pin Pricked – Polyurethane. Available twin and multi lines with different hose combination and size. Also, special colors up on request. Temperature Range: Continuous: -40°C to +100°C temp. not to exceed +70°C for Air and water based fluids.

HYDRAULIC HOSE PH153 - SAE J517-100-R1 / EN 853 1SN MEDIUM PRESSURE HYDRAULIC LINES 40 TO 250 BAR Application: MEDIUM Pressure Hydraulic Lines 40 to 250 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems Applicable Standard: Standard: SAE J517 – 100 R1 / EN 8531SN Construction: Core: Oil & water resistant Synthetic rubber Reinforcement: Single steel wire braid Cover: Black Color, Synthetic rubber resistant to weather and abrasion, oil & ozone. Temperature Range: Continuous: -40°C to +120°C Impulse Cycles : 150,000 Tested upto: 300,000 cycles, upto 1I.D.

HYDRAULIC HOSE PH278 - SPIRAL HOSE. EN 856 / 4SH /VERY HIGH PRESSURE HYDR.LINES 250 TO 420 BAR Application: Very high pressure Hydraulic Lines 250 to 420 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Eathmoving & Material handling equipemtns and machineries/systems. Applicable Standard: Standard: EN 856-4SH Construction: Core: Oil and Water resistant Synthetic rubber Reinforcement: Four high tensile steel wire spirals Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion Temperature Range: Continuous: -40°C to +100°C Intermittent: max. 120°C

THERMOPLASTIC HYDRAULIC HOSE PH350 / PH351 VERY H/P JACK HOSE HYDRAULIC LINES 520 TO 700 BAR Application: Very High Pressure Hydraulic Lines 520 to 700 bar. Compact, high pressure, light weight, high abrasion resistance and low change in length for use with petroleum, synthetic or water based fluids in Hydraulic Systems mainly used for rescue, safety equipments, bolt tensioning tools and jacking & re-railing equipments. Also, suitable for earthmoving and material handling equipments. Applicable Standard: Standard: Polyhose proprietary hose. Construction: Core: Thermoplastic Elastomer Reinforcement:PH350 Double steel wire braids, PH351 Single/Double braids of aramid fibre with single steel wire braid Cover:Red/Orange color Polyurethane, Available Twin & Multi lines with different Hose combination and size. Temperature Range: Continuous: -40°C to +100°C Temp not to exceed +70°C for Air and water based fluids.

TEFLON (PTFE) HOSE PH370 CONVOLUTED / PH371 CONVOLUTED CONDUCTIVE Aplication: P.T.F.E. hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in applications where all or one of the above properties is the main criteria in automotive, chemical, pharmaceutical & food processing, plastic & rubber molding machines. Also, for some applications the tube can also be made conductive to dissipate electro-static Charges. Applicable Standard: Standard: Polyhose proprietary product. Construction: Core: Helically convoluted sintered tube of polytetrafluoroethylene (P.T.F.E.). Reinforcement: Single braid of 304/316 series of stainless steel wire Temperature Range: Continuous: -54°C to +260°C

TEFLON (PTFE) HOSE PH382 GAS HOSE - DOUBLE BRAID OF SUS 304/316 Application: P.T.F.E. hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in applications where all or one of the above properties is the main criteria. Transport of cryogenic gases at high pressure. Applicable Standard: Standard: Polyhose proprietary product. Construction: Core: Special quality of sintered tube of polytetrafluoroethylene (P.T.F.E.). Reinforcement: Double braids of 303/304 series of stainless steel wire Temperature Range: Continuous: -60°C to +260°C
