E-Catalog > Rubber Expansion Joint and Rubber Joint > RUBBER FLEXIBLE JOINT SINGLE SPHERE-MAT.EPDM/NEOPRENE/NBR

PAGE VIEW : 29,459

Product Information :

Name :

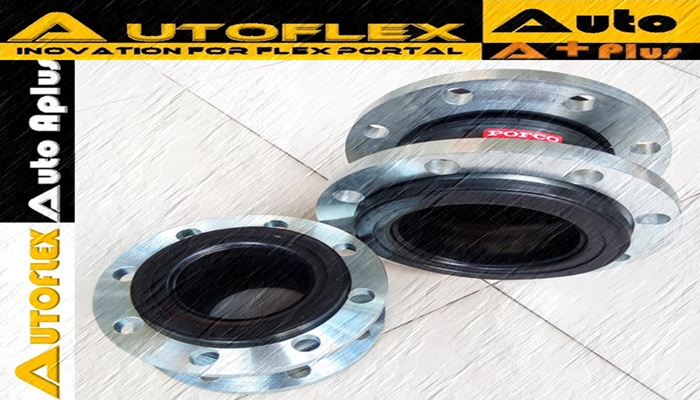

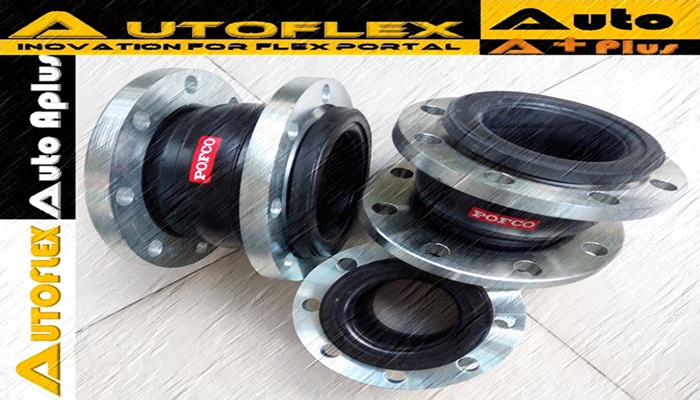

RUBBER FLEXIBLE JOINT SINGLE SPHERE-MAT.EPDM/NEOPRENE/NBR
Category :
  1. พลังงาน
Sub - Category :
  1. Rubber Expansion Joint and Rubber Joint
Brand :
POFPO
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
  2. บริการ
  3. วัตถุดิบ
  4. สินค้า, ผลิตภัณฑ์
Short Description :
POFPO Rubber flexible joint are desi gned for tough demanding indusreial application,as found in : Air conditioning-heating and ventilating systems,chemical-petrochemical and industrial process piping systems. Power generating systems, marine service, pulp & paper systems,water-wastewater sewage and pollution control system. Instsalled next to mechanical equiment or between the anchor point of piping system. Specify the POFPO Rubber flexible joint to : 1.Absorb pipe/movement/stress 2. Decrease systems noise 3. Isolate Vibration 4. Compensate alignment/offset 5. Eliminate electrolysis 6. Protect against start up,Surge forces Features: -Vibration,Sound And Shock Absorption -Higher Burst Strength -Greater Recovery From Movement -Free From Corrosion -Security Assured In Usage -Low Deformation Under Pressure -Suitable For Suction And Delivery -Greater Movements are Availlable

Product Detail :

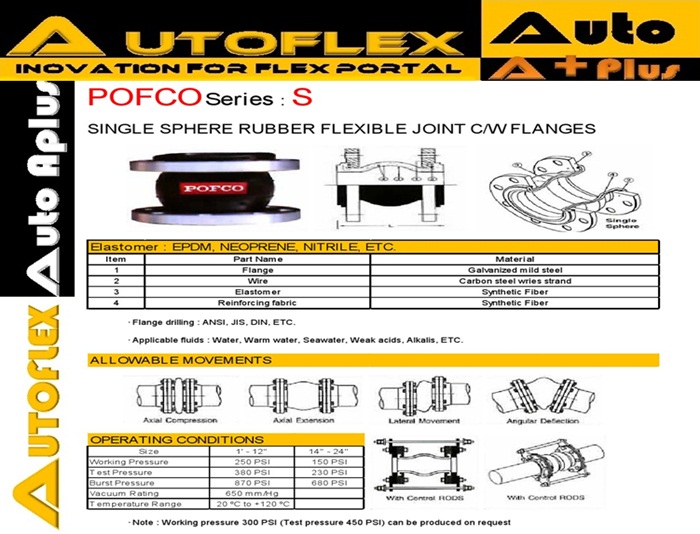

RUBBER FLEXIBLE JOINT SINGLE SPHERE. MAT. EPDM, NEOPRENE, NBR : SERIES S, C/W FLANGES. ANSI-JIS-DIN FIG : J, A, G, T, FCD 40

POFPO Rubber flexible joint are desi gned for tough demanding  indusreial application,as found in : Air conditioning-heating and ventilating systems,chemical-petrochemical and industrial process piping systems. Power generating systems, marine service, pulp & paper systems,water-wastewater sewage and pollution control system. Instsalled next to mechanical equiment or between the anchor point of piping system. Specify the POFPO Rubber flexible joint to :

  1. Absorb pipe/movement/stress
  2. Decrease systems noise
  3. Isolate Vibration
  4. Compensate alignment/offset
  5. Eliminate electrolysis
  6. Protect against start up,Surge forces

FEATURES :

VIBRATION, SOUND AND SHOCK ABSORPTION

                                Noises. vibration of motor and compressor. water hammer. pumping impulses and water born noises can be absorbed.Also withstands surge pressurs without shattering owing to their tensile strength.

HIGHER BURST STRENGTH

                                Spherical shape is stronger than cylindrical shape or other configuration.Under pressure. POFPO joint is 4 times as strong as a cylindrical joint. Also our products are made of the most suitable materials resulting in buest pressures much higher than those of other makes.

GREATER RECOVERY FROM MOVEMENT

                                They will nether crack nor fracture under repeated flexing. They have a remarkable long life expectancy even under adverse conditions due to the finest grades of rubber and other materials used in their manufacture.

FREE FROM CORROSION

                                They are made to withstand corrosive chemicals and can be supplied to resist acid fumes and ozone attack.

SECURITY ASSURED IN USAGE

                                Special spherical design prevents the body of the coming into contact with the bolt heads when subjected to high pressure and expansion. The robust coupling provide a sense of security as a result of the damage proof design.

LOW DEFORMATION UNDER PRESSURE

                                Internal pressure is exerted in all dirctions distributing forces evenly over a large area. This results in very low deformation of the joints.

SUITABLE FOR SUCTION AND DELIVERY

                                Because of the excellent moulding technique with its tough chemical fiber. The joints can satisfactorily withstand the suction and discharge. Vacuum rating can stand up to 650 mm/Hg

GREATER MOVEMENTS ARE AVAILLABLE

                                Four-way movements-axial compression and extension. Lateral movement and angular deflections provide a high level of installation flexibility.
