Product Information :

Name :
THERMOPLASTIC HYDRAULIC HOSE PH148 - SAE 100R7 / DIN EN855 MEDIUM PRESSURE HYDRAULIC LINES 70 TO 210 BAR
Category :
  1. รถยนต์และชิ้นส่วนที่เกี่ยวกับรถยนต์
Sub - Category :
  1. Thermoplastic Hose:Explore our wide range of Thermoplastic hoses suitable for sewerjet, paint spray, greasing and lubricant applications, microbore, pilot line and more.
Brand :
POLYHOSE
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
THERMOPLASTIC HYDRAULIC HOSE PH148 - SAE 100R7 / DIN EN855 MEDIUM PRESSURE HYDRAULIC LINES 70 TO 210 BAR Application: Medium Pressure Hydraulic Lines 70 to 210 bar. Suitable for Hydraulic application with increased resistance to abrasion. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Articulating & Telescopic booms and Material handling equipments. Can be used for industrial gases and other applications, please consult manufacturer. Applicable Standard: tandard: SAE 100 R7 / DIN EN 855 Construction: Core: Thermoplastic Elastomer Reinforcement: 1 braid of synthetic fibre Cover: Black color, Pin Pricked – Polyurethane. Available twin and multi lines with different hose combination and size. Also, special colors up on request. Temperature Range: Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids

Product Detail :

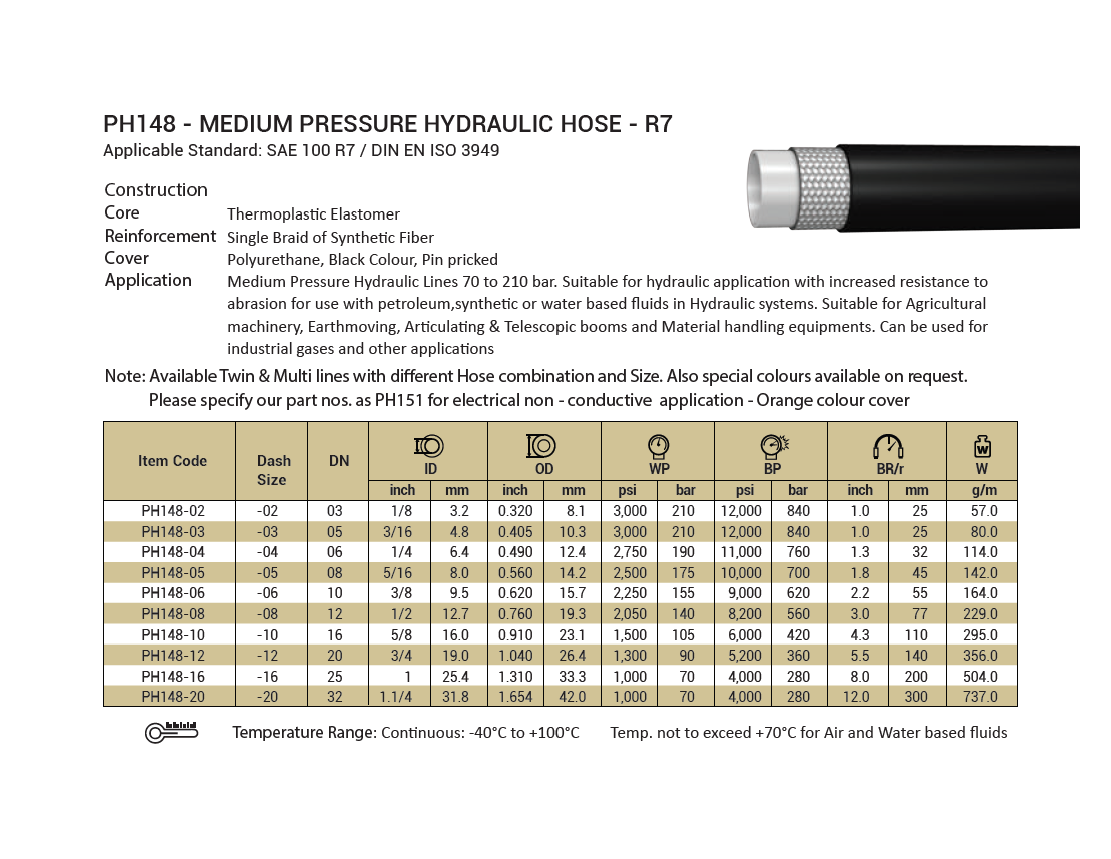

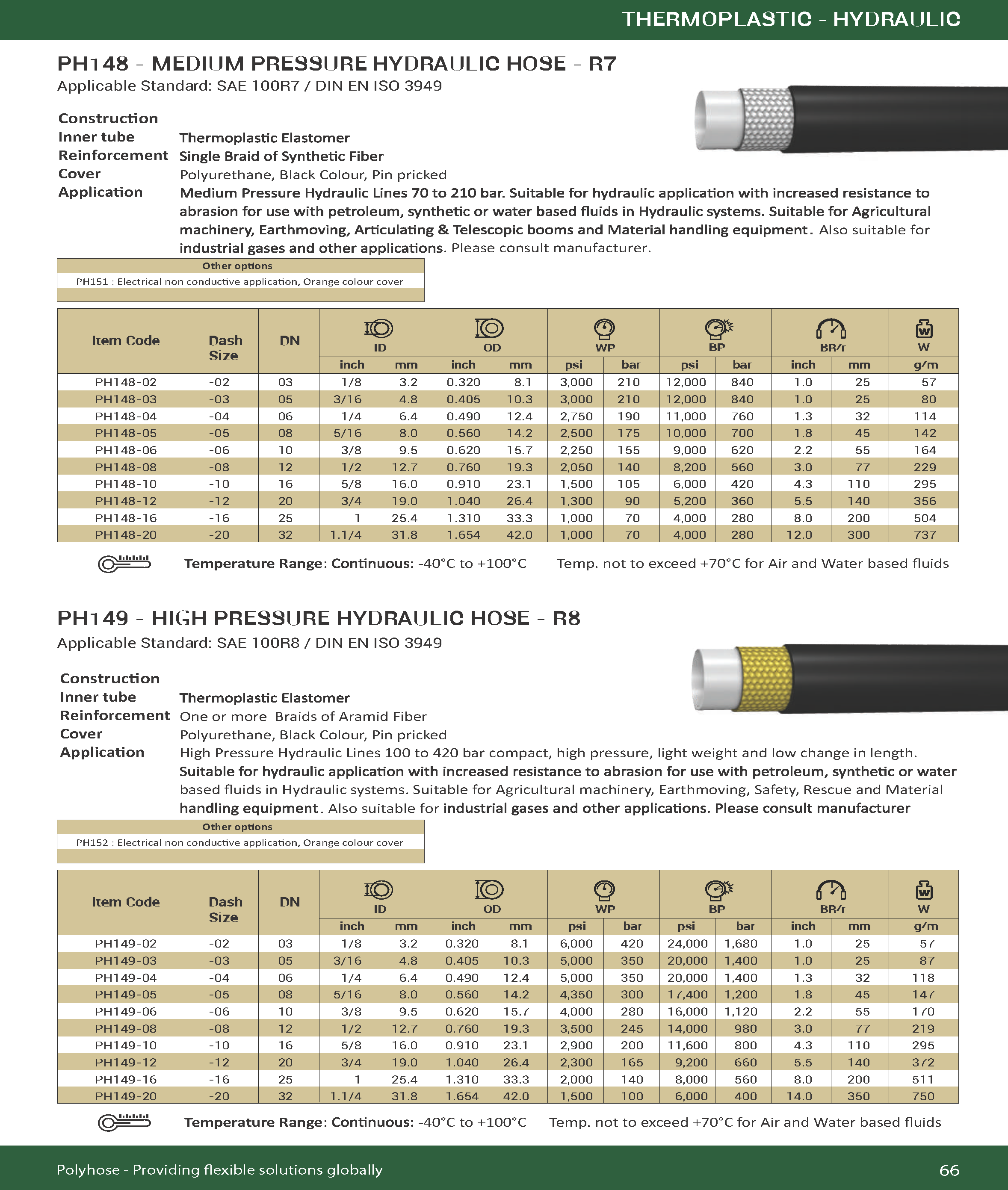

    PH148 - SAE 100R7 / DIN EN855 : MEDIUM PRESSURE THERMOPLASTIC HYDRAULIC HOSE.

    THERMOPLASTIC HYDRAULIC HOSE PH148 - SAE 100R7 / DIN EN855 MEDIUM PRESSURE HYDRAULIC LINES 70 TO 210 BAR

    Application: Medium Pressure Hydraulic Lines 70 to 210 bar.Suitable for Hydraulic application with increased resistance to abrasion. For use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Articulating & Telescopic booms and Material handling equipments. Can be used for industrial gases and other applications, please consult manufacturer.

    Applicable Standard: tandard: SAE 100 R7 / DIN EN 855

    Construction:

                       Core: Thermoplastic Elastomer

                       Reinforcement: 1 braid of synthetic fibre

                       Cover: Black color, Pin Pricked – Polyurethane. Available twin and multi lines with different hose combination and size. Also, special colors up on request.

                       Temperature Range: Continuous: -40°C to +100°C Temp. not to exceed +70°C for Air and Water based fluids





Product Gallery :
