Product Information :

Name :
THERMOPLASTIC HYDRAULIC HOSE PH149 - SAE 100R8 / DIN EN855 HIGH PRESSURE HYDRAULIC LINES 100 TO 420 BAR
Category :
  1. รถยนต์และชิ้นส่วนที่เกี่ยวกับรถยนต์
Sub - Category :
  1. Thermoplastic Hose:Explore our wide range of Thermoplastic hoses suitable for sewerjet, paint spray, greasing and lubricant applications, microbore, pilot line and more.
Brand :
POLYHOSE
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
THERMOPLASTIC HYDRAULIC HOSE PH149 - SAE 100R8 / DIN EN855 HIGH PRESSURE HYDRAULIC LINES 100 TO 420 BAR Application: Highpressure Hydraulic Lines 100 to 420 bar. Compact, high pressure, light weight and low change in length. Suitable for hydraulic application with increased resistance to abrasion. For use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Safety, Rescue and material handling equipments. Can be used for industrial gase and other applications, please consult manufacturer. Applicable Standard: Standard: SAE 100 R8 / DIN EN 855 Construction: Core: Thermoplastic Elastomer Reinforcement: 1 or 2 braid of Aramid fibre Cover: Black color, Pin Pricked – Polyurethane. Available twin and multi lines with different hose combination and size. Also, special colors up on request. Temperature Range: Continuous: -40°C to +100°C temp. not to exceed +70°C for Air and water based fluids.

Product Detail :

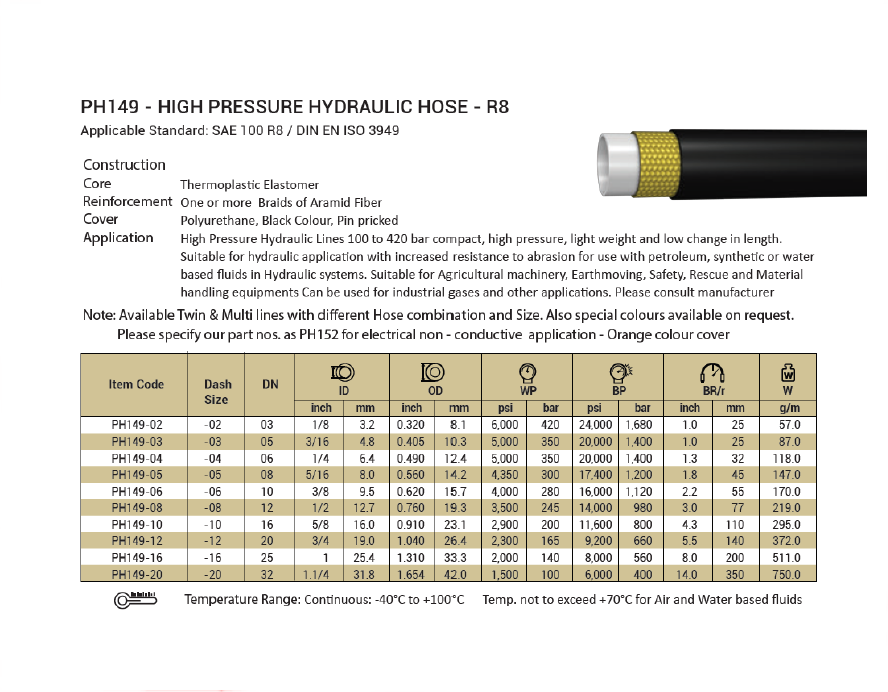

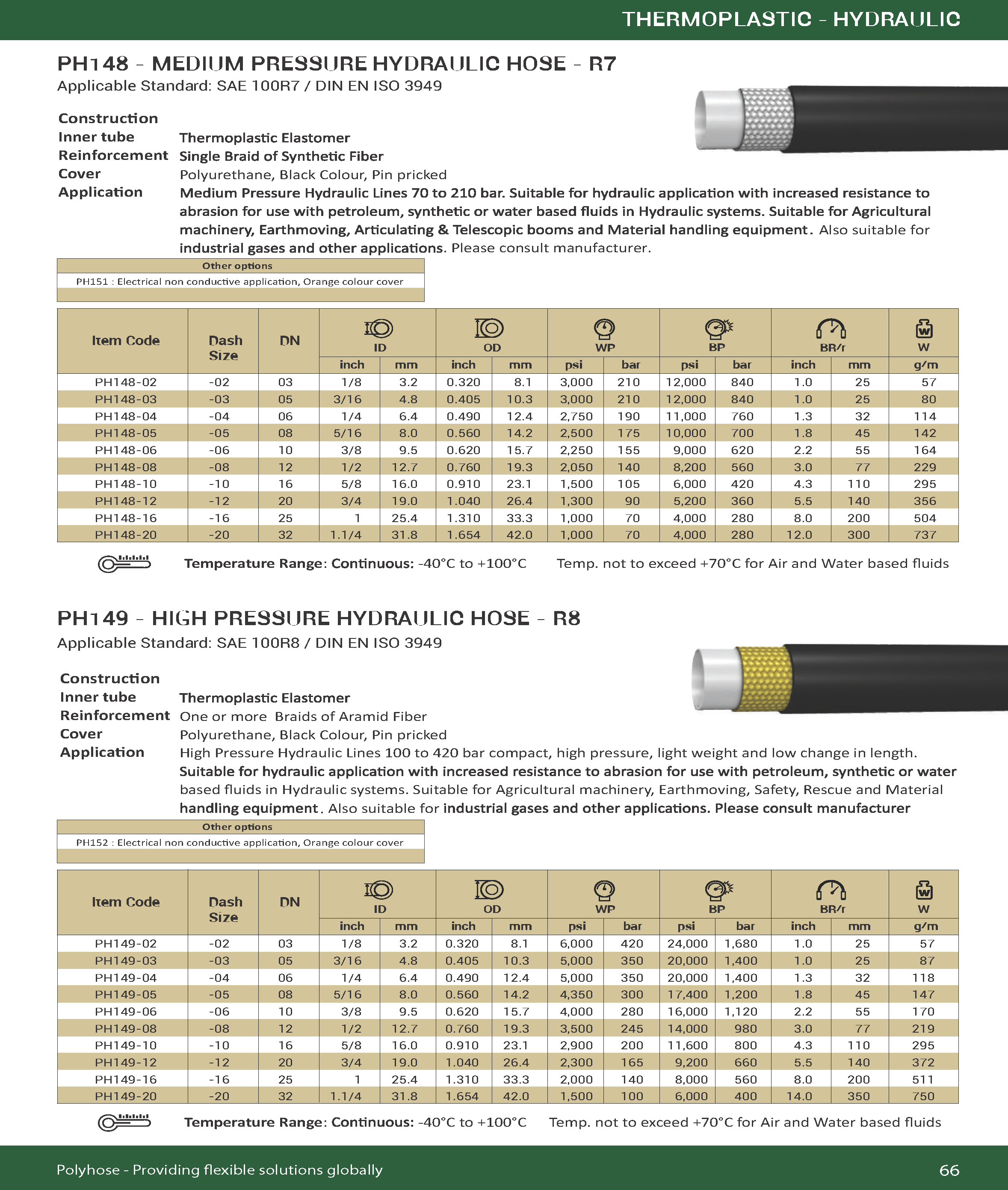

    PH149 – SAE 100 R8 / DIN EN 855: High Pressure – Hydraulic Hose (Thermoplastic Hydraulic Hose)

    THERMOPLASTIC HYDRAULIC HOSE PH149 - SAE 100R8 / DIN EN855 HIGH PRESSURE HYDRAULIC LINES 100 TO 420 BAR

    Application: Highpressure Hydraulic Lines 100 to 420 bar.

Compact, high pressure, light weight and low change in length. Suitable for hydraulic application with increased resistance to abrasion. For use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Safety, Rescue and material handling equipments. Can be used for industrial gase and other applications, please consult manufacturer.

    Applicable Standard: Standard: SAE 100 R8 / DIN EN 855

    Construction:

                       Core: Thermoplastic Elastomer

                       Reinforcement: 1 or 2 braid of Aramid fibre

                       Cover: Black color, Pin Pricked – Polyurethane. Available twin and multi lines with different hose combination and size. Also, special colors up on request.

                       Temperature Range: Continuous: -40°C to +100°C temp. not to exceed +70°C for Air and water based fluids.





Product Gallery :
