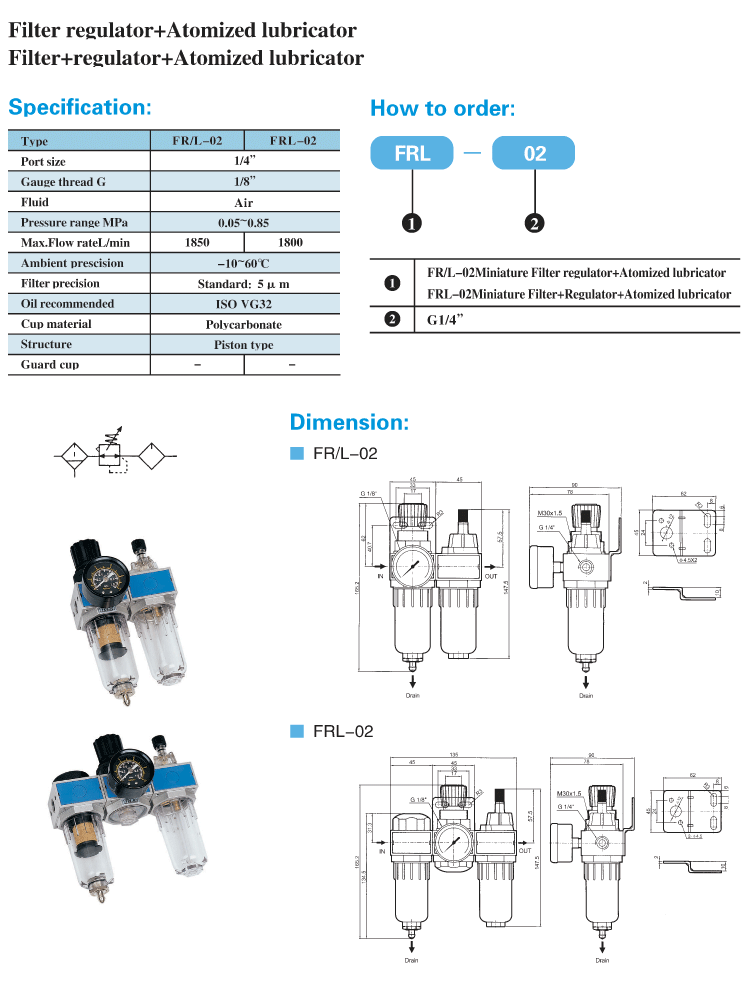

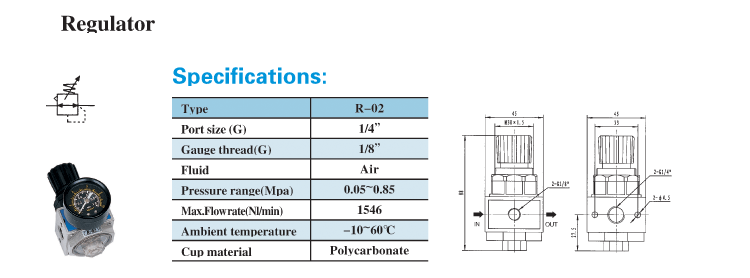

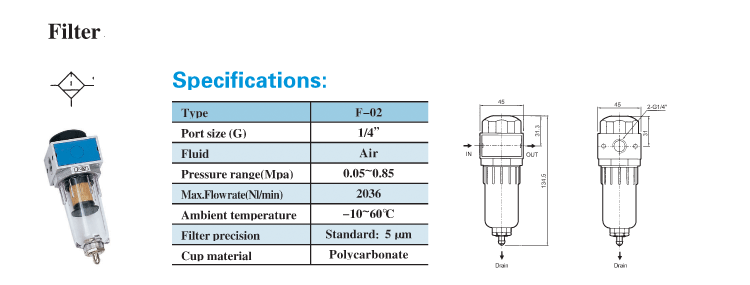

E-Catalog > Pneumatic:Air Cylinder,Unit Services,Air Control Valve > Unit Services (Air Filter Regulator Lubricator) FR/L series ชุดปรับปรุงคุณภาพลมอัด

Corrugated Expansion Joint, Metal Bellows, Expansion Joint, Metal Joint, Stainless Steel Vacuum Pipe Bellows, Metal Bellow Expansion Joint for Vacuum : SS304, SS316 Flange Connection Flexible Metal Hose Product Description : Flange Connection Flexible Metal Hose Product Description : Size Range : DN6 up to DN600 Wall Thickness : 0.15 Up To 0.8 mm Material : SUS304, SUS316, SUS321 Standard : ASTM, DIN, JIS Cross - Section Shape : Round Usage : Protect Hose Hose Type : Corrugated Metal Hoses And Helical Metal Hose Connection Type : Flange

PETROLEUM SUCTION HOSE OR FUEL - OIL S&D T605 - 10 BAR OR 150 PSI BLACK T605AA - 150 PSI Black Petroleum Suction Hose Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content. Note: T605AA is not recommended for use on a reel. WORKING PRESSURE : Constant Pressure 150 PSI Construction : -Tube: Black conductive NBR -Reinforcement : High tensile textile cords and steel helix wires. Cover : Black CR – abrasion, ozone and hydrocarbon resistant. Temperature : -22 to 176 ºF ,-30 to 80 ºC

UNION - 150 LBS SUS304,316L,GALVANIZED (ยูเนี่ยนต่อท่อประปาเหล็ก),CARBON STEEL SS400 TYPE.THEADED - SOCKET UNION Production art:investment casting Material: SS316 SS304  SS400 Type:union conical ;union cone;union flat Size: 1/8”~4” Thread: BSP NPT Standard: ISO4144;SP114;JIS Pressure:ANSI Class 150lbs Application:Water, Gas, Oil ect

GLAND PACKING 4001 PTFE With Lubricate Dipped Braided Packing Product Details Model NO.: MK-4001 Standard: Standard Material: PTFE+ Silicone Oil Usage: Pump, Compressor, Valve Size Range: 4mm-50mm Product Description 1.Braided with Pure PTFE yarn and treated with high temperature-resistant silicone oil, minimizing shaft worn-out due to best self-lubrication. applicable for dynamic seal at high linear speed. 2. 100% White Expanded PTFE Packing is designed for use in valves, but can be used in other low speed services. 3. Fast and simple to install, with minimum maintenance requirements. Pure Teflon Packing can be adjusted very finely and reduced to extremely low levels. 4. High chemical resistance, very low coefficients of friction. 5. 100% White Expanded PTFE Packing is suitable for valves and pumps used in food processing, pharmaceuticals, paper mills, fiber plant, where high purity and corrosion resistance is required.

FLEXIBLE HOSE SUS304, SUS321, SUS316 - FLANGE SUS304, SUS316, SUS400 10K, 150P, PN16 WITH BOTH END FIXED 2 SIDE TUBE AND BRAID AVAILABLE : SUS304, SUS321, SUS316, BRAIDED MESH LAYER : SINGLE LAYER Flexible Stainless Steel Hoses Seal Flexible stainless steel hose (sleeves) sealed, are designed for transportation of liquid and gaseous media, for water, steam, condensate, gas and petroleum products, chemical products. Operate in extreme conditions, operating pressures and temperatures. Spiral shaped convolution spiral advance profiled steel band with subsequent contact and seam welding. They have a diameter of 6 mm to 300 mm and lengths from 250 to 6000 mm. For the production of this type of hose used stainless strip thickness 0,15-0,40 mm. High-quality steel airtight hose is not advisable to use in systems with a high level of vibration as the exploitation of metal hoses in such conditions leads to a resonant vibration of the corrugations or shells entirely. Spiral represented by two species - rolled and corrugated variations. Corrugated metal oloruka made of seamless or longitudinally welded thin-walled tubes, which are formed by special mechanical or hydraulic devices and supplied with end fittings. They are used as low-cost flexible connecting elements as loading hoses and of movement, thermal expansion, vibration absorption. Corrugated metal hose is completely waterproof, can be used to transfer liquids and gases under high pressure. In addition, the hose to the valve can be used in vacuum systems. Addition weld metal hoses we supply hoses with flange with thread. Due to the high reliability and durability to impacts flexible connection was in demand in the market pipelines and has been widely used in the automotive, aerospace, shipbuilding, metallurgy, petroleum, chemical, food, medical industry and many other industries.

FLEXIBLE HOSE CORRUGATED ANNULAR SUS304, SUS321, SUS316 TYPE. FLANGE WITH END FIXED + FREE SIDE : DN15 (1/2”) – DN.300 (12") Flexible Stainless Steel Hoses Seal Flexible stainless steel hose (sleeves) sealed, are designed for transportation of liquid and gaseous media, for water, steam, condensate, gas and petroleum products, chemical products. Operate in extreme conditions, operating pressures and temperatures. Spiral shaped convolution spiral advance profiled steel band with subsequent contact and seam welding. They have a diameter of 6 mm to 300 mm and lengths from 250 to 6000 mm. For the production of this type of hose used stainless strip thickness 0,15-0,40 mm. High-quality steel airtight hose is not advisable to use in systems with a high level of vibration as the exploitation of metal hoses in such conditions leads to a resonant vibration of the corrugations or shells entirely. Spiral represented by two species - rolled and corrugated variations. Corrugated metal oloruka made of seamless or longitudinally welded thin-walled tubes, which are formed by special mechanical or hydraulic devices and supplied with end fittings. They are used as low-cost flexible connecting elements as loading hoses and of movement, thermal expansion, vibration absorption. Corrugated metal hose is completely waterproof, can be used to transfer liquids and gases under high pressure. In addition, the hose to the valve can be used in vacuum systems. Addition weld metal hoses we supply hoses with flange with thread. Due to the high reliability and durability to impacts flexible connection was in demand in the market pipelines and has been widely used in the automotive, aerospace, shipbuilding, metallurgy, petroleum, chemical, food, medical industry and many other industries.

REDUCING HEX NIPPLE - 150 LBS STAINLESS STEEL SUS304 - SUS316 - CARBON STEEL SS400 : BSP,NPT 304 Stainless Steel has high corrosion resistance Max Pressure: 150 Psi, Threaded with Hex Working Temperature: -196°C to +220°C (321°F to 428°F) NPT Threads (American Standard for Pipes) Nipples are used to attach two female ended pipes
