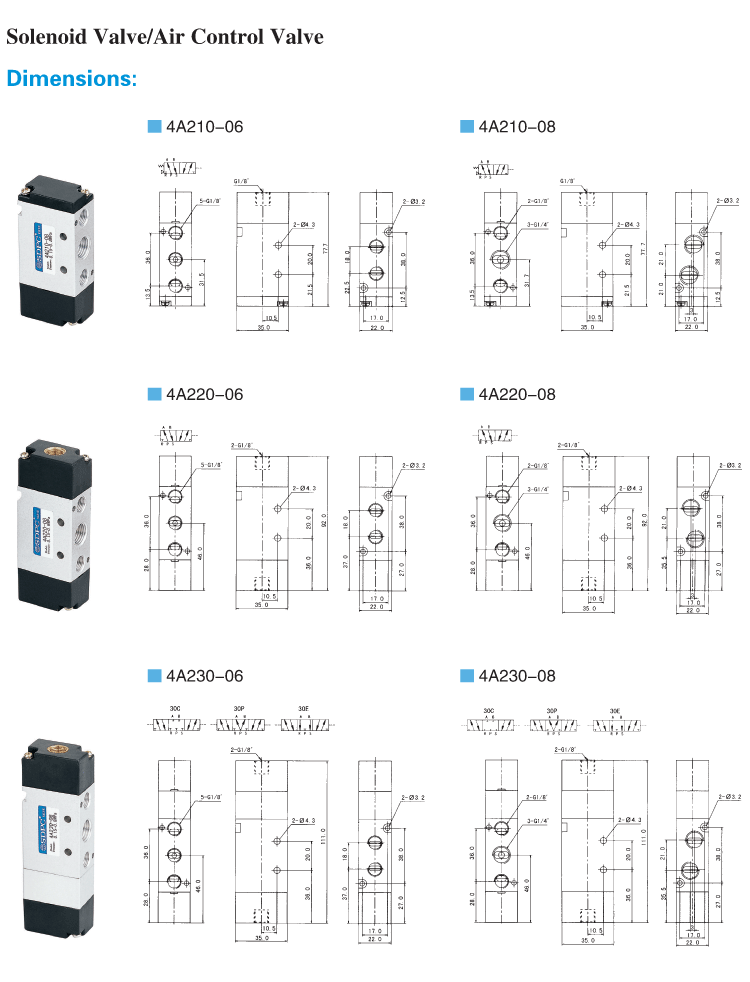

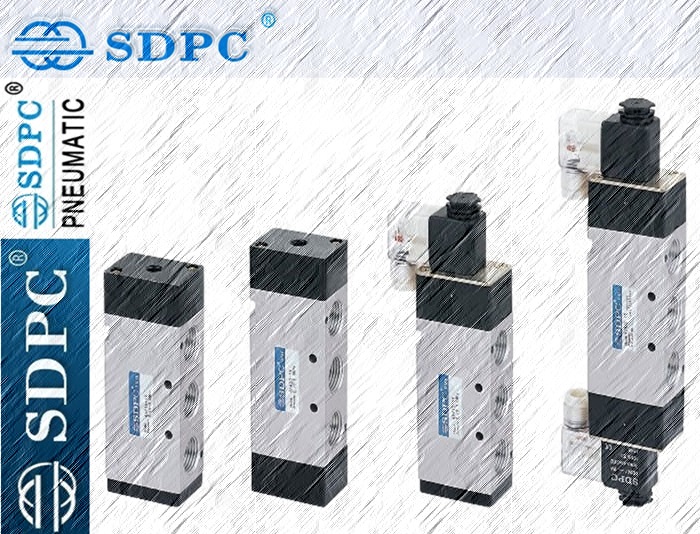

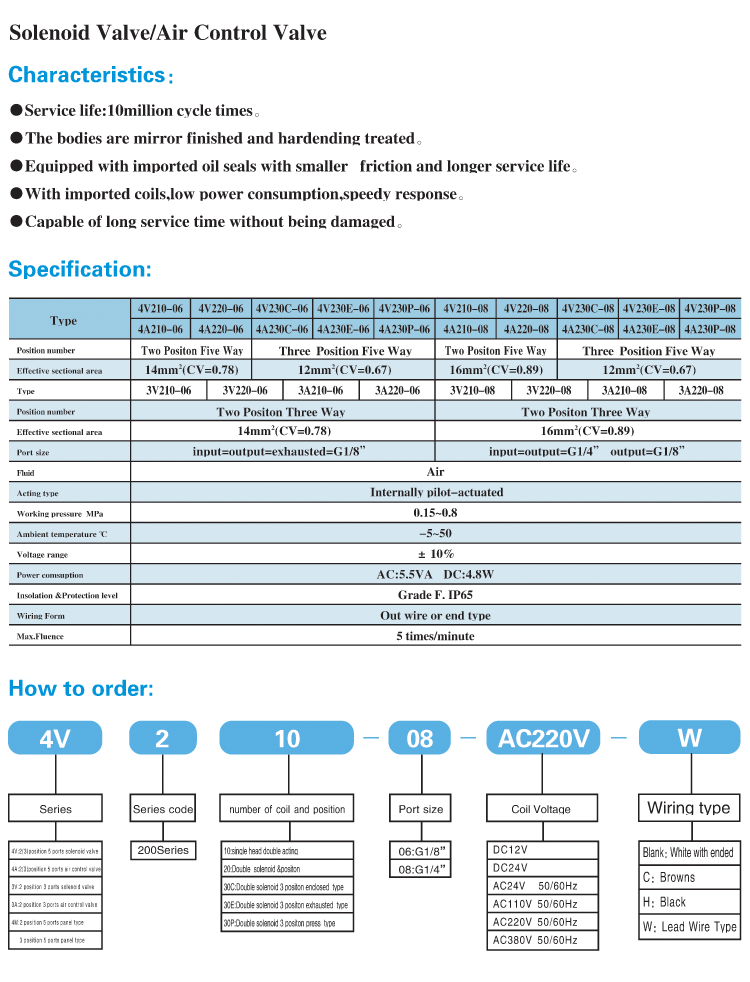

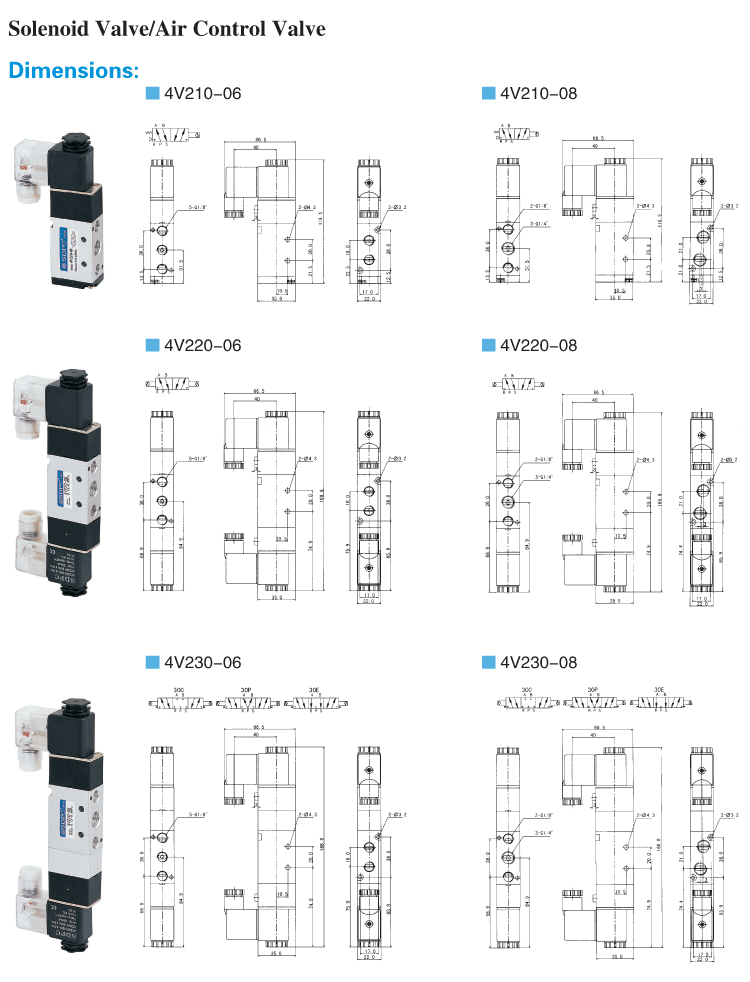

E-Catalog > Pneumatic:Air Cylinder,Unit Services,Air Control Valve > Air Control Valve 200 Series Port:1/4 วาล์วควบคุมทิศทางการไหลของลมอัด

Flexible Hoses Type.Union-Nipple This hose is suitable for conveying all types of liquid and gases with extreme low and high temperature requirements. Mainly used in: •Iron & steel industry •Petroleum and gas plants •Chemistry industry •Heating and cooling systems •Food industry •Automotive industry •Paper production plants •Maritime industry •Defence industry •Moving systems •Any kind of depot and tank connect

LARGE BORE INDUSTRIAL HOSE PH611 OIL / FUEL SUCTION AND DISCHARGE HOSE W/P.10 BAR Application: Mandrel built heavy duty water suction and discharge hose for handling grades of gasoline or petroleum oils of aromatic content upto 50% from tank truck, in dispensing station, etc., during winter/summer seasons and withstands full vacuum. Construction: Core: NBR blended.. Reinforcement: Plies of synthetic cords with steel helix and anti static copper wire. Cover: SBR blended, wrapped type, weather, oil, ozone, abrasion resistant. Temperature Range: Continuous: -40°C to +85°C.

LARGE BORE INDUSTRIAL HOSE PH614 OIL SUCTION AND DISCHARGE HOSE W/P.20 BAR Application: For Suction & discharge of various grades of gasoline and petroleum oil of aromatic content upto 50% from tank truck in dispensing station, etc., suitable for winter/summer season and withstands full vacuum. Construction: Core: Oil & water resistant synthetic rubber. Reinforcement: Synthetic yarn fabric with steel wire helix. Cover: Synthetic rubber resistant to ozone, oil, weather and abrasion. Temperature Range: Continuous: -20°C to +85°C.

LARGE BORE INDUSTRIAL HOSE PH642 XLPE CHEMICAL SUCTION AND DISCHARGE HOSE Application: Excellent in handling petroleum based products, hydrocarbon solvents, oxidising chemicals, major strong acid and alkali as well as organic fluid etc. Construction: Core: Synthetic rubber with XLPE liner. Reinforcement: Plies of synthetic cords with helix wire. Cover: Green color EPDM, wrapped type, abrasion and weather resistant. Temperature Range: Continuous: -20°C to +120°C.

THERMOPLASTIC HYDRAULIC HOSE PH149 - SAE 100R8 / DIN EN855 HIGH PRESSURE HYDRAULIC LINES 100 TO 420 BAR Application: Highpressure Hydraulic Lines 100 to 420 bar. Compact, high pressure, light weight and low change in length. Suitable for hydraulic application with increased resistance to abrasion. For use with petroleum, synthetic or water based fluids in hydraulic systems. Suitable for Agricultural machinery, Earthmoving, Safety, Rescue and material handling equipments. Can be used for industrial gase and other applications, please consult manufacturer. Applicable Standard: Standard: SAE 100 R8 / DIN EN 855 Construction: Core: Thermoplastic Elastomer Reinforcement: 1 or 2 braid of Aramid fibre Cover: Black color, Pin Pricked – Polyurethane. Available twin and multi lines with different hose combination and size. Also, special colors up on request. Temperature Range: Continuous: -40°C to +100°C temp. not to exceed +70°C for Air and water based fluids.

HYDRAULIC HOSE PH154 - SAE J517-100-R2 / EN 853 2SN HIGH PRESSURE HYDRAULIC LINES 80 TO 415 BAR Application: High Pressure Hydraulic Lines 80 to 415 bar and requires compact outer dia. For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Agricultural, Earthmoving & Material handling equipments and machineries/systems. Applicable Standard: Standard: SAE J517 – 100 R2 / EN 853-2SN Construction: Core: Oil & water resistant Synthetic rubber Reinforcement: Double steel wire braids Cover: Black Color, Synthetic rubber resistant to weather and abrasion ,oil & ozone Temperature Range: Continuous: -40°C to +120°C Impulse Cycles : 200,000 Tested upto: 400,000 cycles,upto 1” I.D.

HYDRAULIC HOSE PH277 - SPIRAL HOSE. EN 856 / 4SP VERY HIGH PRESSURE HYDRAULIC LINES 165 TO 450 BAR Application: Very high pressure Hydraulic Lines 165 to 450 bar and hydrostatic transmission lines For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Earthmoving & Material handling equipments and machineries/systems Applicable Standard: Standard: EN 856-4SP Construction: Core: Oil and Water resistant Synthetic rubber Reinforcement: Four high tensile steel wire spirals Cover: Black Color, Synthetic rubber resistant to oil, weather and abrasion Temperature Range: Continuous: -40°C to +100°C Intermittent: max. 120°C

THERMOPLASTIC HYDRAULIC HOSE PH350 / PH351 VERY H/P JACK HOSE HYDRAULIC LINES 520 TO 700 BAR Application: Very High Pressure Hydraulic Lines 520 to 700 bar. Compact, high pressure, light weight, high abrasion resistance and low change in length for use with petroleum, synthetic or water based fluids in Hydraulic Systems mainly used for rescue, safety equipments, bolt tensioning tools and jacking & re-railing equipments. Also, suitable for earthmoving and material handling equipments. Applicable Standard: Standard: Polyhose proprietary hose. Construction: Core: Thermoplastic Elastomer Reinforcement:PH350 Double steel wire braids, PH351 Single/Double braids of aramid fibre with single steel wire braid Cover:Red/Orange color Polyurethane, Available Twin & Multi lines with different Hose combination and size. Temperature Range: Continuous: -40°C to +100°C Temp not to exceed +70°C for Air and water based fluids.

TEFLON (PTFE) HOSE PH370 CONVOLUTED / PH371 CONVOLUTED CONDUCTIVE Aplication: P.T.F.E. hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in applications where all or one of the above properties is the main criteria in automotive, chemical, pharmaceutical & food processing, plastic & rubber molding machines. Also, for some applications the tube can also be made conductive to dissipate electro-static Charges. Applicable Standard: Standard: Polyhose proprietary product. Construction: Core: Helically convoluted sintered tube of polytetrafluoroethylene (P.T.F.E.). Reinforcement: Single braid of 304/316 series of stainless steel wire Temperature Range: Continuous: -54°C to +260°C
