Product Information :

Name :

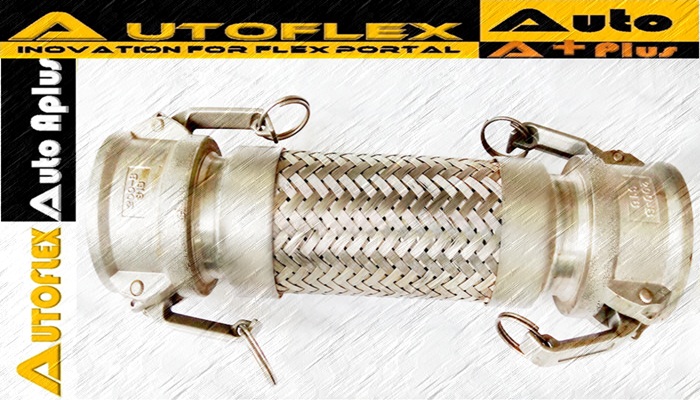

Flexible Hoses Type.Camlock Coupling
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Stainless Steel Flexible Hoses and Metal Hose:SUS304,SUS316
Brand :
AUTOFLEX
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Camlock Fittings connected stainless steel flexible metallic hose This hose is suitable for conveying all types of liquid and gases with extreme low and high temperature requirements. Mainly used in: •Iron & steel industry •Petroleum and gas plants •Chemistry industry •Heating and cooling systems •Food industry •Automotive industry •Paper production plants •Maritime industry •Defence industry •Moving systems •Any kind of depot and tank connect

Product Detail :

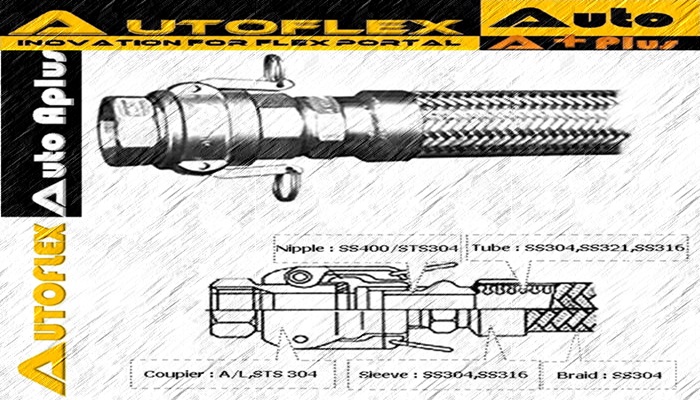

           Specification:
           Material: SS304,SS316
           Diameter: 1/2"-6"
           Corrugated type: annular or helical corrugated

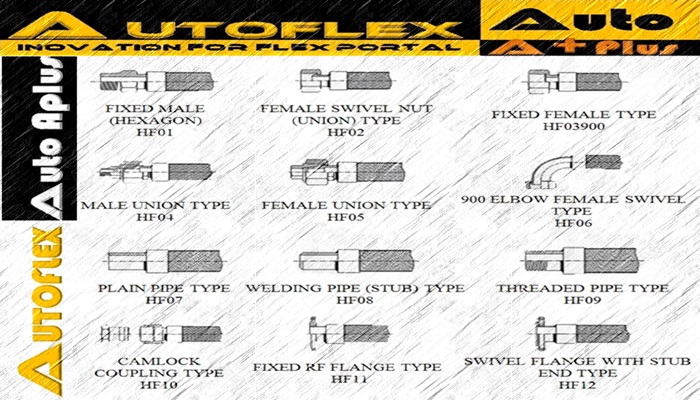

           Connect type: cam lock quick coupling connect
           Braided wire layer: single or double layer braided
           Working pressure: 1.0-10.0MPa
           Joint material: stainless steel SS304,SS316
           Hose length: according to client's requirements
           Applications:
                    1.Used in transporting mediums such as air, smoke, all kinds of industrial gas, water and oil
                    2.Can play an important role in hose reciprocating motion, thermal expansion absorption, vibration absorption and adjusting compound tube center
                    3.Connector for gas, oil and water with modern equipment pipeline systems and project pipeline systems
          This hose is suitable for conveying all types of liquid and gases with extreme low and high temperature requirements.
Mainly used in
                        •Iron & steel industry
                        •Petroleum and gas plants
                        •Chemistry industry
                        •Heating and cooling systems
                        • Food industry
                        •Automotive industry
                        •Paper production plants
                        •Maritime industry
                        •Defence industry
                        •Moving systems
                        •Any kind of depot and tank connect

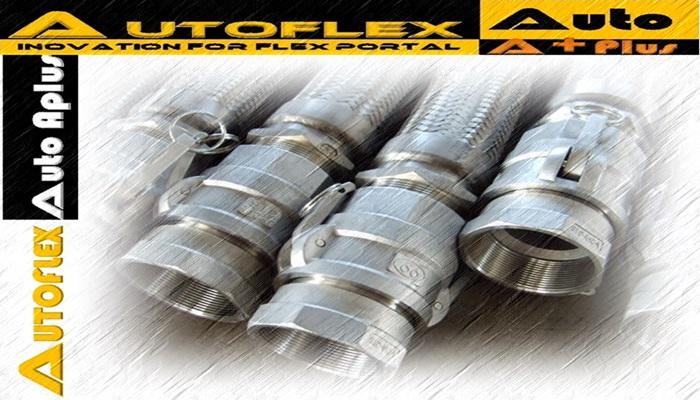

Product Gallery :
