Product Information :
Name :
FLEXIBLE HOSE LARGE SIZE DIAMETER SUS304 LARGE DIAMETER STAINLESS STEEL METALIC CORRUGATED FLEXIBLE HOSE : DN100 (4”) – DN600 (24”) Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- Stainless Steel Flexible Hoses and Metal Hose:SUS304,SUS316
Brand :
AUTOFLEX Product Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
TUBE AND BRAID AVAILABLE : SUS304/SUS316, BRAIDED MESH LAYER : SINGLE LAYER
ท่ออ่อนสแตนเลส เกรด 304 ขนาดใหญ่ ใช้สำหรับงานประปา งานชลประทาน งานน้ำทั่วไป งานสตรีม DN100(4") - DN600 (24") (inch) stainless steel flexible hose with flange fitting :
1.Excellent Flexibility 2.Resistance to Corrosion
3.High Temperat
6"- 16" (Inch) Stainless Steel Flexible Hose With Flange Fitting:
1 High Physical Strength With Light Weight.
2 A Long UsaGe Life.
3 Good Corrosion Characteristics, Resistance to Fire,Moisture, Abrasion and Penetration.
4 Flexibility Making it Good For Static Installations or Even Where There is Constant Flexing in The Application
5 Absorbs Vibration and Noise From Pumps, Compressors, Engines Etc.
6 Compensates For Thermal Expansion and Contraction of Piping.
7 Corrects Problems of Misalignment.
8 A Flexible and Quick Alternative For Rigid Piping in Difficult Locations.
- Iron & Steel Industry (อุตสาหกรรมเหล็กและเหล็กกล้า)
- Petroleum and Gas Plants (ปิโตรเลียมและก๊าซ)
- Chemistry industry (พืชอุตสาหกรรมเคมี)
- Heating and cooling systems (ร้อนและระบบระบายความร้อน)
- Food industry (อุตสาหกรรมอาหาร)
- Automotive industry (อุตสาหกรรมยานยนต์)
- Paper production plants (โรงงานผลิตกระดาษ)
- Maritime industry (อุตสาหกรรมการเดินเรือ)
- Defence industry (อุตสาหกรรมกลาโหม)
- Moving systems (ระบบการย้าย)
- Any kind of depot and tank connections (ชนิดของคลังและการเชื่อมต่อถัง)
Product Detail :

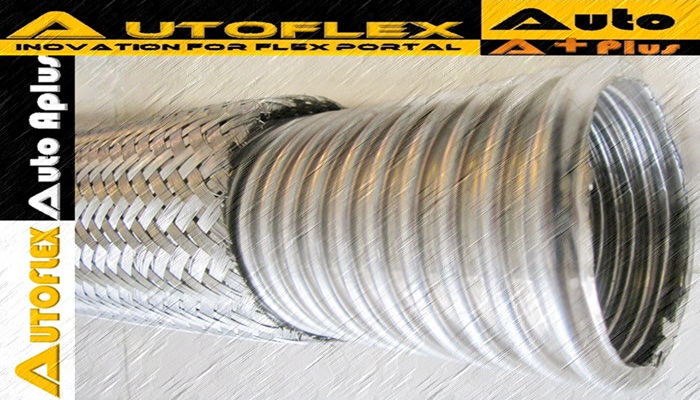

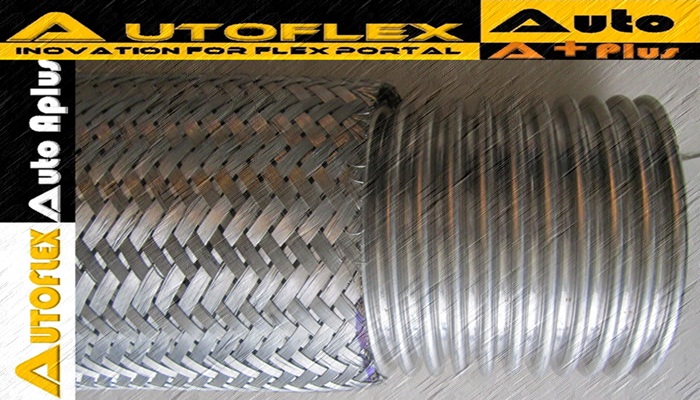

FLEXIBLE HOSE LARGE SIZE DIAMETER SUS304 LARGE DIAMETER STAINLESS STEEL METALIC CORRUGATED FLEXIBLE HOSE : DN100 (4”) – DN600 (24”)
PRODUCT DESCRIPTION: FLEXIBLE HOSE MATERIAL : SUS304,SUS316
DIAMETER : DN100 (4") - DN600 (24") INCH
PIPE TYPE : ANNULAR CORRUGATED
CONNECT TYPE : FIXED +FREE FLANGE , BOTH END FIXED FLANGE, BOTH END LOOSE FLANGE
FLANGE STANDARD : JIS OR ANSI, DIN, ETC
FLANGE MATERIAL : SUS304,SUS316, A105, SUS400L
BRAIDED MESH LAYER : ONE BRAIDED
WORKING TEMPERATURE : -200 °C ~ +600°C
TOTAL LENGTH : ACCORDING TO YOURE REQUEST

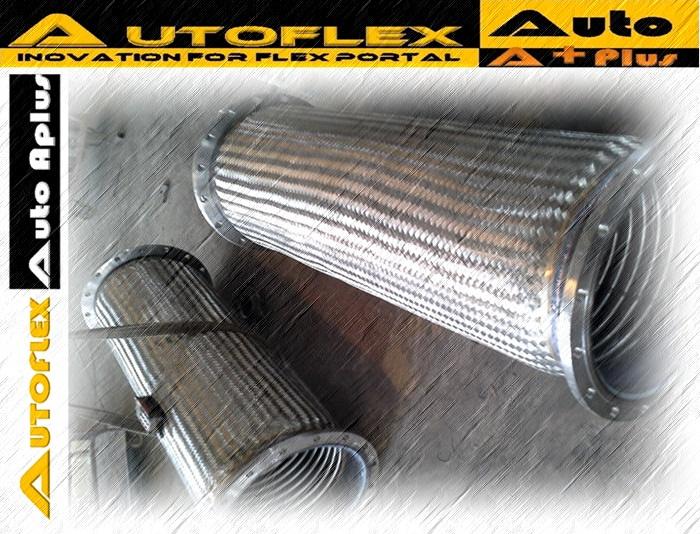

SPECIFICATIONS : DN100 (4") - DN600 (24") (INCH) STAINLESS STEEL FLEXIBLE HOSE WITH FLANGE FITTING
1.Excellent flexibility 2.Resistance to corrosion 3.High temperat
DN100 (4") - DN600 (24") (INCH) STAINLESS STEEL FLEXIBLE HOSE WITH FLANGE FITTING:
1 High physical strength with light weight. 2 A long usage life.
3 Good corrosion characteristics,resistance to fire,moisture, abrasion and penetration.
4 Flexibility making it good for static installations or even where there is constant flexing in the application
5 Absorbs vibration and noise from pumps,compressors, engines etc.
6 Compensates for thermal expansion and contraction of piping.
7 Corrects problems of misalignment.
8 A flexible and quick alternative for rigid piping in difficult locations.
Application:
-Iron & steel industry (อุตสาหกรรมเหล็กและเหล็กกล้า)
-Petroleum and gas plants (ปิโตรเลียมและก๊าซ)
-Chemistry industry (พืชอุตสาหกรรมเคมี)
-Heating and cooling systems (ร้อนและระบบระบายความร้อน)
-Food industry (อุตสาหกรรมอาหาร)
-Automotive industry (อุตสาหกรรมยานยนต์)
-Paper production plants (โรงงานผลิตกระดาษ)
-Maritime industry (อุตสาหกรรมการเดินเรือ)
-Defence industry (อุตสาหกรรมกลาโหม)
-Moving systems (ระบบการย้าย)
-Any kind of depot and tank connections (ชนิดของคลังและการเชื่อมต่อถัง)
Big Diameter Stainless Steel Corrugated Flexible Hose
Product Description Features:
1. To absorb effectively the vibration, noise, thermal expansion from pipeline system;
2. To resolve minor deviation because of piping connecting and eliminate the pipeline residual stress;
3. Applied to repeated motion in high temperature areas, good anti-fatigue performance;
4. Good flexibility, resistant to high temperature, resistant to corrosion.
5. Applications: The chemical industry, metallurgy, electricity, shipbuilding, construction and other industries.
Installation instructions
1. Hose shall be kept in horizontal or vertical position, which is not in line with compressors, to avoid static pulling or pressing stress.
2. Any collision with hard ting should be avoided before or after installation, and abrasion of corrugation with hard thing also should be avoided during using.
Flexible Metal Hose Assembly : Thread Connect way
|
Diameter |
Pressure |
Length |
|
DN8 |
100 BAR |
≥100 mm |
|
DN10 |
80 BAR |
≥100 mm |
|
DN12 |
125 BAR |
≥100 mm |
|
DN13 |
64 BAR |
≥100 mm |
|
DN15 |
100 BAR |
≥100 mm |
|
DN18 |
80 BAR |
≥100 mm |
|
DN20 |
75 BAR |
≥100 mm |
|
DN25 |
75 BAR |
≥100 mm |
|
DN32 |
64 BAR |
≥100 mm |
|
DN40 |
56 BAR |
≥150 mm |
|
DN50 |
40 BAR |
≥150 mm |
|
DN65 |
40 BAR |
≥200 mm |
|
DN80 |
32 BAR |
≥200 mm |
|
DN100 |
25 BAR |
≥200 mm |
Applications: This flexible hose is suitable for conveying all types of liquid and gases with extreme low and high temperature requirements. mainly used in Iron & steel industry,Petroleum and gas plants,chemistry industry,heating and cooling systems,food industry,automotive industry,paper production plants,maritime industry.
