E-Catalog > Camlock Coupling & Groove And Pin Lug Coupling > CAMLOCK COUPLING & GROOVE AND PIN LUG COUPLING - PIN LUG HOSES
PAGE VIEW : 21,792
Product Information :
Name :
CAMLOCK COUPLING & GROOVE AND PIN LUG COUPLING - PIN LUG HOSES Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- Camlock Coupling & Groove And Pin Lug Coupling
Brand :
AUTOFLEX Product Type :
- เครื่องมือ, เครื่องจักรและอุปกรณ์
- บริการ
- วัตถุดิบ
- สินค้า, ผลิตภัณฑ์
Short Description :

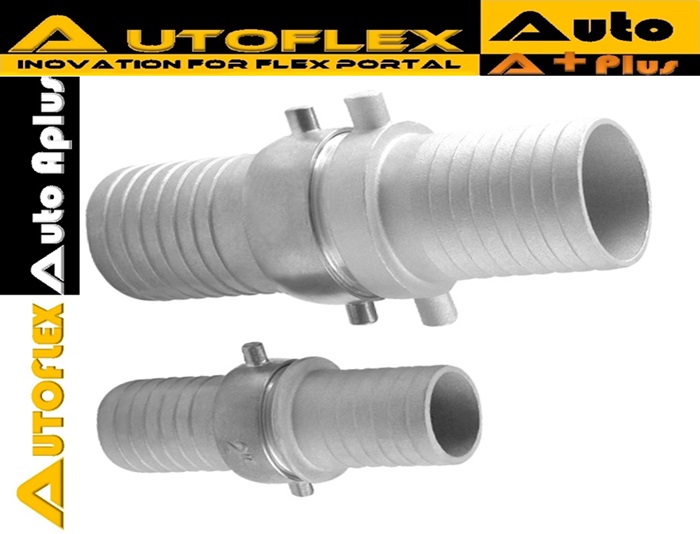

CAMLOCK COUPLING & GROOVE AND PIN LUG COUPLING - PIN LUG HOSES (PIN LUG COUPLING AND PIN LUG HOSES SHANK)
We are offering pin lug coupling, pin lug hose shank, suction hose coupling.

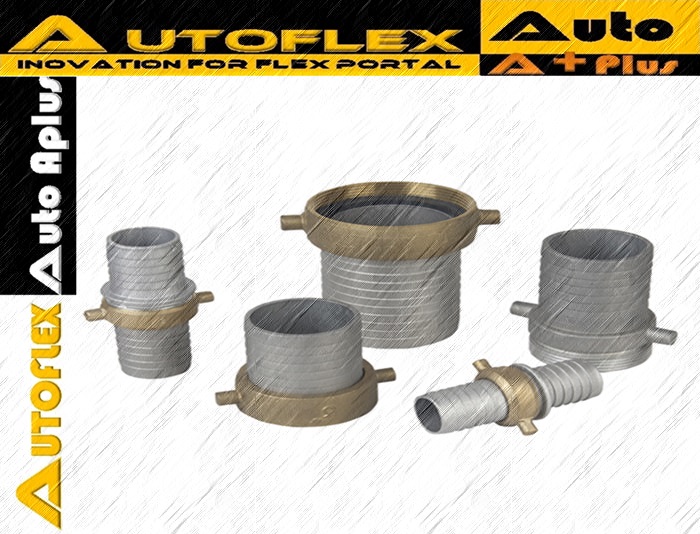

sizes: 1-12" to 6"parts: full set, female set, male set,brass nut body material: aluminum body with brass nut

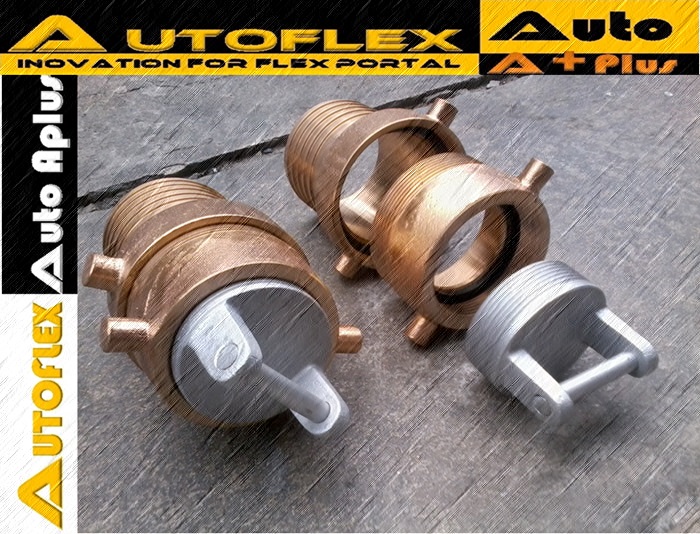

aluminum brass pin-lug couplings are built of lightweight aluminum with brass pin-lug nut for long lasting durability. Pin-lug style assures strength and reliability. Can be used with hoses capable of handling water or other liquids, providing increased adaptability. Will require clamps to attach hose. Available in sizes 1-12"-6" as female, male and coupling set.
Product Detail :
CAMLOCK COUPLING & GROOVE AND PIN LUG COUPLING - PIN LUG HOSES (PIN LUG COUPLING AND PIN LUG HOSES SHANK)
PRODUCT DESCRIPTION :

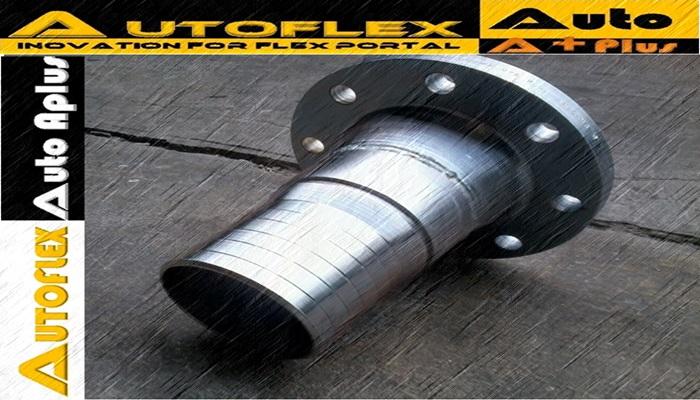

Flanged King Combination Nipples - Steel - 150# ASA Flange x Hose Shank
On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.
Application:
a. Combination nipples are recommended for low-pressure discharge and suction service for compatible liquids. They are not for compressible products such as air or nitrogen on sizes 1-1/4" and above.
b. King Combination Nipples are not recommended for steam.
The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
c. In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
Size :1 1/2",2",3",4",6",8",10",12"
We are offering pin lug coupling, pin lug hose shank, suction hose coupling.
sizes: 1-12" to 6"parts: full set, female set, male set,brass nut body material: aluminum body with brass nut
aluminum brass pin-lug couplings are built of lightweight aluminum with brass pin-lug nut for long lasting durability. Pin-lug style assures strength and reliability. Can be used with hoses capable of handling water or other liquids, providing increased adaptability. Will require clamps to attach hose. Available in sizes 1-12"-6" as female, male and coupling set.
Pin Lug - Coupling - King - Short Shank - Female - NPSM Threads - 4" - Steel
Our 4" short shank pin lug coupling is a female shank in NPSM threads. It's primary function is to be installed on the ends of a PVC hose or rubber hose. Female end is made of steel, and has iron swivel/nut. This coupling is most commonly used by contractors, but also home owners and rental yards.
Features :
4" female NPSM threads
4" O.D. (Outside Diameter)
Steel shank with iron swivel/nut
Description :
Our 2 1/2" short shank pin lug coupling comes complete with male and female shanks in NST threads. It's primary function is to be installed on the ends of a PVC hose or rubber hose. Male and female ends are made of aluminum, and the female end has brass swivel/nut. This coupling is most commonly used by contractors, but also home owners and rental yards.
Features :
2 1/2" female & male NST threads
2 1/2" O.D. (Outside Diameter)
Aluminum shanks with brass swivel/nut
Product Gallery :
