E-Catalog > Hydraulic Hoses ALFAGOMMA > STEAM HOSE AH-RED/AH-BLACK : EPDM T330AH / T330AA - 17 BAR OR 250 PSI

PAGE VIEW : 11,010

Product Information :

Name :
STEAM HOSE AH-RED/AH-BLACK : EPDM T330AH / T330AA - 17 BAR OR 250 PSI
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Hydraulic Hoses ALFAGOMMA
Brand :
ALFAGOMMA
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
STEAM HOSE AH-RED/AH-BLACK : EPDM T330AH / T330AA - 17 BAR OR 250 PSI T330AH /T330AA - 250 PSI EPDM STEAM HOSE APPLICATION:The transfer of saturated steam up to 250 PSI AND 406°F. Use with superheated steam will shorten hose life. * Proper draining of steam hose after each use will increase service life. * Not recommended for washdown applications where detergent or oils are present. WORKING PRESSURE : Constant Pressure — 17 Bar (250 PSI)

Product Detail :

                    STEAM HOSE AH-RED/AH-BLACK : EPDM T330AH / T330AA - 17 BAR OR 250 PSI

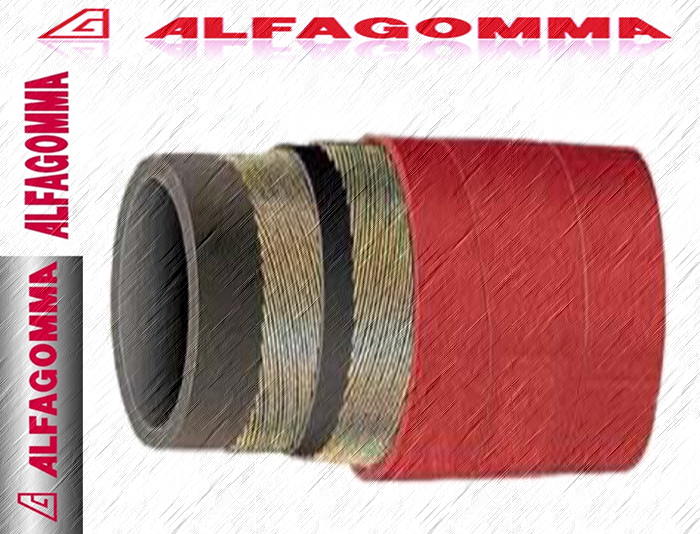

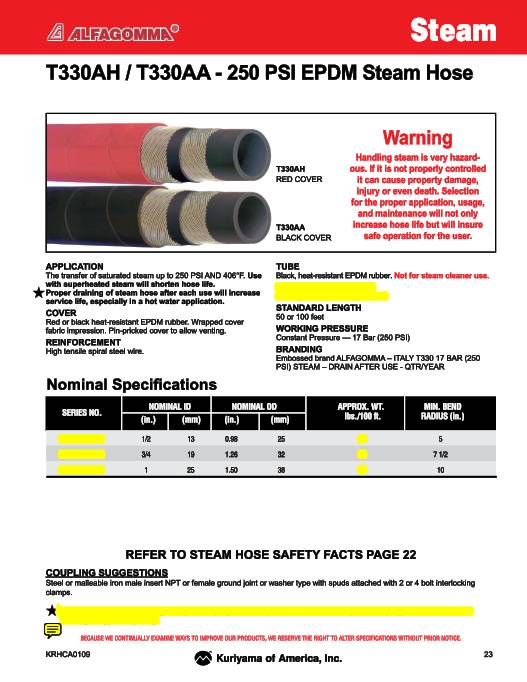

      T330AH - 250 PSI EPDM STEAM HOSE

      APPLICATION:

      The transfer of saturated steam up to 250 PSI AND 406°F. Use with superheated steam will shorten hose life.

                         * Proper draining of steam hose after each use will increase service life.

                         * Not recommended for washdown applications where detergent or oils are present.

       WORKING PRESSURE : Constant Pressure — 17 Bar (250 PSI)

       Warning : Handling steam is very hazardous. If it is not properly controlled it can cause property damage, injury or even death. Selection for the proper application, usage, and maintenance will not only increase hose life but will insure safe operation for the user.

                          -TUBE : Black, heat-resistant EPDM rubber. Not .for steam cleaner use.

                          -REINFORCEMENT: High tensile steel cords.

                          -OVER :  Red or black heat-resistant EPDM rubber. Wrapped cover fabric impression. Pin-pricked cover to allow venting.

       TEMPERATURE : -40 to 406 ºF, -40 to 210 ºC

        PACKAGING: Coils

        BRANDING: Embossed brand ALFAGOMMA – ITALY T330 17 BAR (250 PSI) STEAM – DRAIN AFTER USE - QTR/YEAR

        COUPLINGS :  Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps. Universal quick-acting couplings should not be used with steam hose.

         LENGTHS : 50 or 100 feet

         COLORS : Black or Red cover

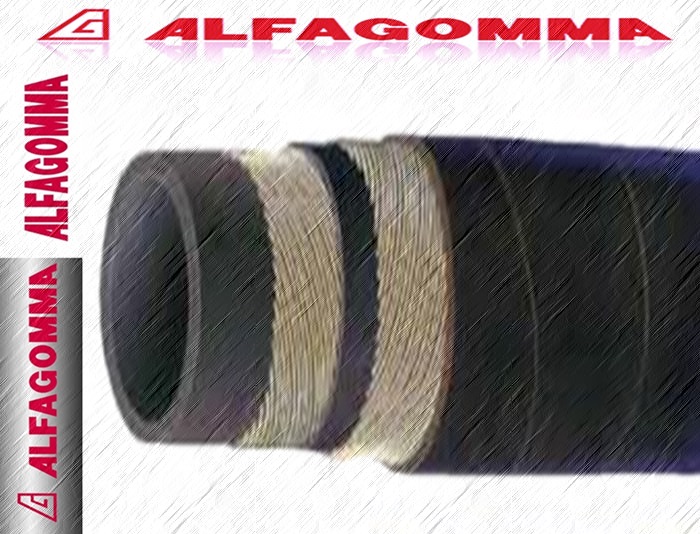

T330AA - 250 PSI EPDM STEAM HOSE

APPLICATION:

The transfer of saturated steam up to 250 PSI AND 406°F.

Use with superheated steam will shorten hose life.

* Proper draining of steam hose after each use will increase service life.

* Not recommended for washdown applications where detergent or oils are present.

WORKING PRESSURE : Constant Pressure — 17 Bar (250 PSI)

Warning : Handling steam is very hazardous. If it is not properly controlled it can cause property damage, injury or even death. Selection for the proper application, usage, and maintenance will not only increase hose life but will insure safe operation for the user.

-TUBE: Black, heat-resistant EPDM rubber. Not .for steam cleaner use.

-REINFORCEMENT: High tensile steel cords.

 - OVER :  Red or black heat-resistant EPDM rubber. Wrapped cover fabric impression. Pin-pricked cover to allow venting.

TEMPERATURE : -40 to 406 ºF, -40 to 210 ºC

PACKAGING: Coils

BRANDING: Embossed brand ALFAGOMMA – ITALY T330 17 BAR (250 PSI) STEAM – DRAIN AFTER USE - QTR/YEAR

COUPLINGS :  Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps. Universal quick-acting couplings should not be used with steam hose.

LENGTHS : 50 or 100 feet

COLORS : Black or Red cover
